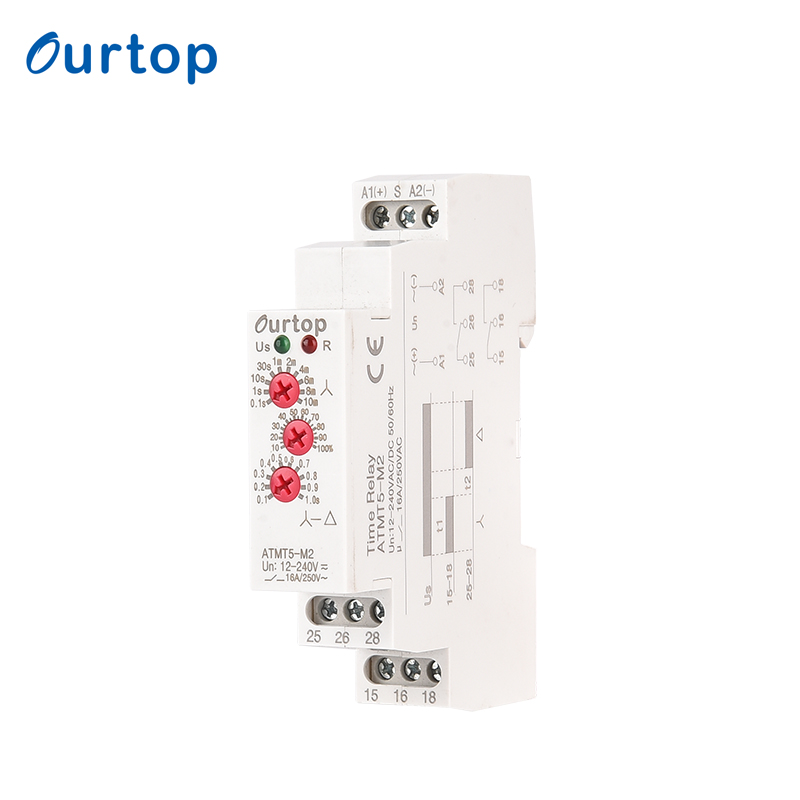

Start-delta Modular Time Relay
ATMT5-M2
The Relay is a versatile and feature-rich device
Time tl(star):
Time scale 0,1s-10min devided into l0 time ranges rough timesetting by potentiometer.
Time range:0.1s,1s,10s,30s,lm,2m,4m,6m,8m,10m.
Time tl(star):
Time scale 0.1s-10s devided intol0 time ranges rough timesetting by potentiometer.
Relay status is indicated by LED.
1 Module.Din Rain mounting.

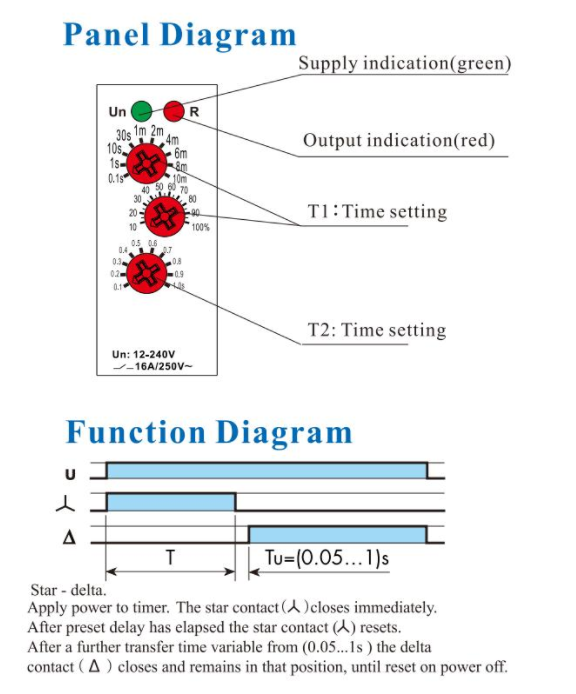

Start Delta
Time tl(star):
Time scale 0,1s-10min devided into l0 time ranges rough timesetting by potentiometer.
Time range:0.1s,1s,10s,30s,lm,2m,4m,6m,8m,10m.
Time tl(star):
Time scale 0.1s-10s devided intol0 time ranges rough timesetting by potentiometer.
Relay status is indicated by LED.
1 Module.Din Rain mounting.
Start Delta
Quantity:
Applications:
- Designated for delay ON ofmotors star/delta.
Features
- Time tl(star):Time scale 0,1s-10min devided intol0 time ranges rough timesetting by potentiometer.
- Time range:0.1s,1s,10s,30s,lm,2m,4m,6m,8m,10m.Time
- tl(star):Time scale 0.1s-10s devided intol0 time ranges rough timesetting by potentiometer.
- Relay status is indicated by LED.
- 1 Module.Din Rain mounting.
- Start Delta
| Technical parameters | ATMT5-M1 ATMT5-M2 | |||||
| Function Start Delta | ||||||
| Supply terminals | A1-A2 | |||||
| Voltage range AC/DC12-240V(50-60Hz) | ||||||
| Burden | AC0.09-3VA/DC0.05-1.7W | |||||
| Supply voltage tolerance | -15%;+10% | |||||
| Supply indication | Green LED | |||||
| Time ranges | 0.1S to 10 Days,ON,OFF | |||||
| Time setting | potentionmeter | |||||
| Time deviation | 10%mechanical setting | |||||
| Repeat accuracy | 0.2%set value stability | |||||
| Temperature coecient 0.05%/℃at=20℃ | ||||||
| Output | 1×SPDT 2×SPDT | |||||
| Current rating 16A/AC1 | ||||||
| Switching voltage | 250VAC/24VDC | |||||
| Min.breaking capacity DC | 500mW | |||||
| Output indication | Red LED | |||||
| Reset tim | max.200ms | |||||
| Operating temperature | -20℃ to+55℃ | |||||
| Storage temperature | -35℃ to+75℃ | |||||
| Mounting/DIN rail | Din RailEN/IEC 60715 | |||||
| Protection degree | IP40 for front panel/IP20 terminals | |||||
| Operating position | any | |||||
| Oyer voltage category III | ||||||
| Pollution degrec | 2 | |||||
| Max.cable size(mm²) solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(awg 12) | ||||||
| Tightening storque | 0.4Nm | |||||

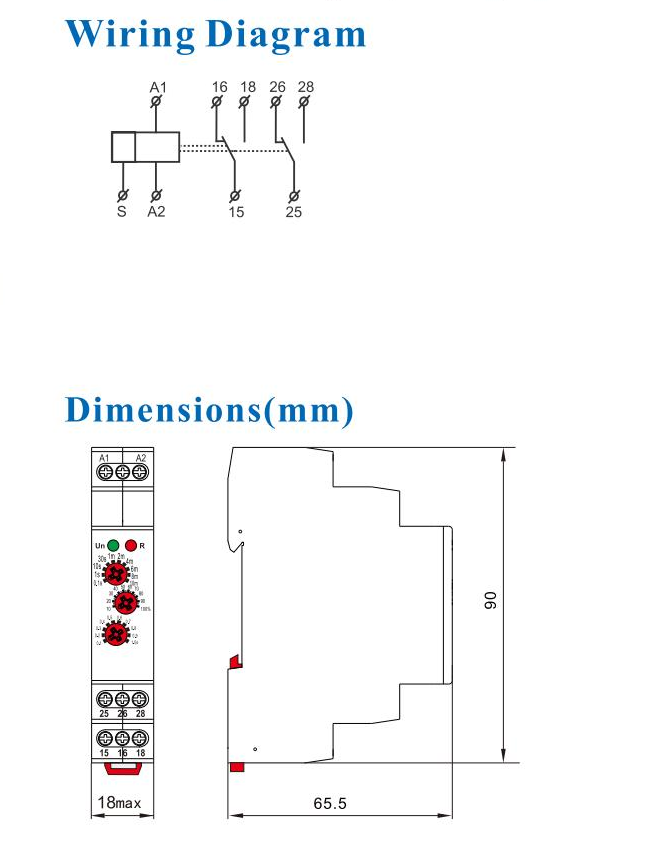

| Dimensions | 90×18×64mm | |||||
| Weight | 1×SPDT:W240-63g,A230-62g | |||||
| 2×SPDT:W240-63g,A230-62g | ||||||
| Standards | EN61812-A,IEC60947-5-1 | |||||
