Off-Delay Time Relay;Fan Control;time relay 240v；Precise Timing；customized service

Off-Delay with control signal Modular Time R

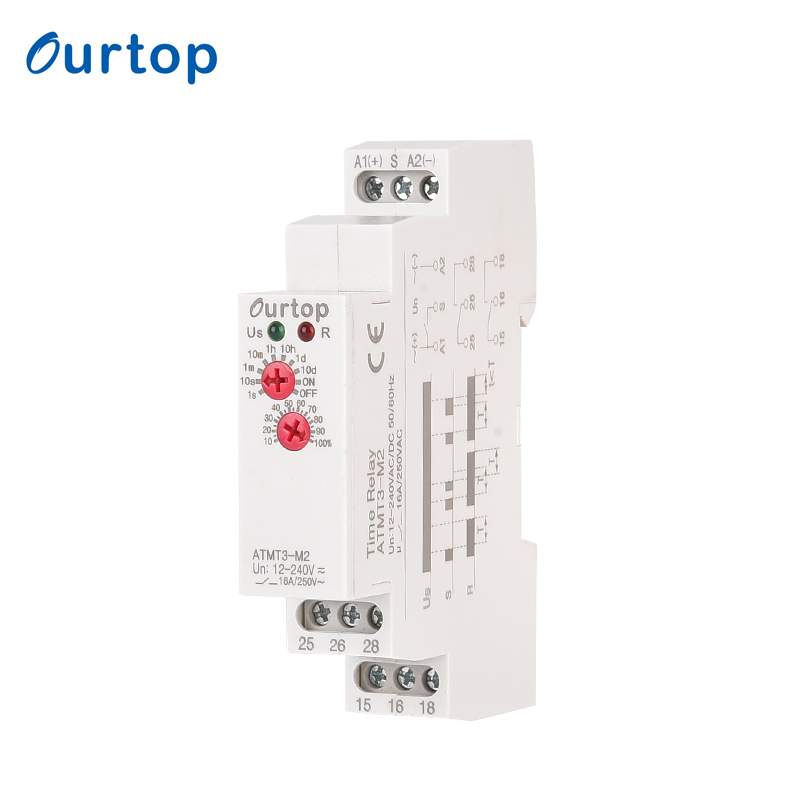

ATMT3-M2
The Relay is a versatile and feature-rich device.
Comfortable and well-arranged function and time-range setting by totary switches.
Time scale 0.lS to l0 Days divided into l0 ranges.
Relay status is indicated by LED.
1 Module,Din Rain mounting.

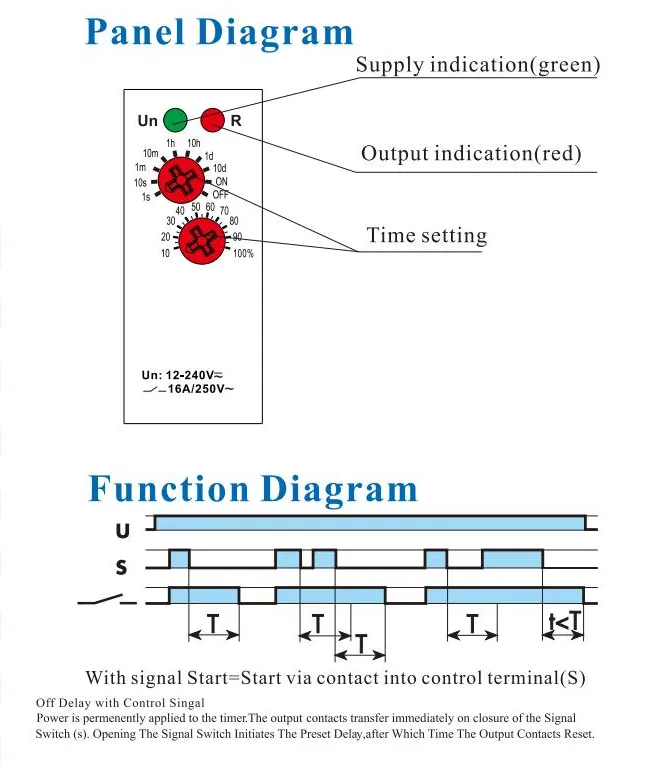

Off-Delay with control signal
Quantity:
Contact Now
add to cart
Applications:
  • Suitable for applications where funetion and time requirements are know.
Time switch, possible to be used for pump deeay time after switchingheating of, switching of fans.



Features
  • Comfortable and well-arranged function and time-range setting by totary switches.
  • Time scale 0.lS to l0 Days divided into l0 ranges.
  • Relay status is indicated by LED.
  • 1 Module.Din Rain mounting.
  • Off-Delay with control signal



Technical parametersATMT3-M1ATMT3-M2

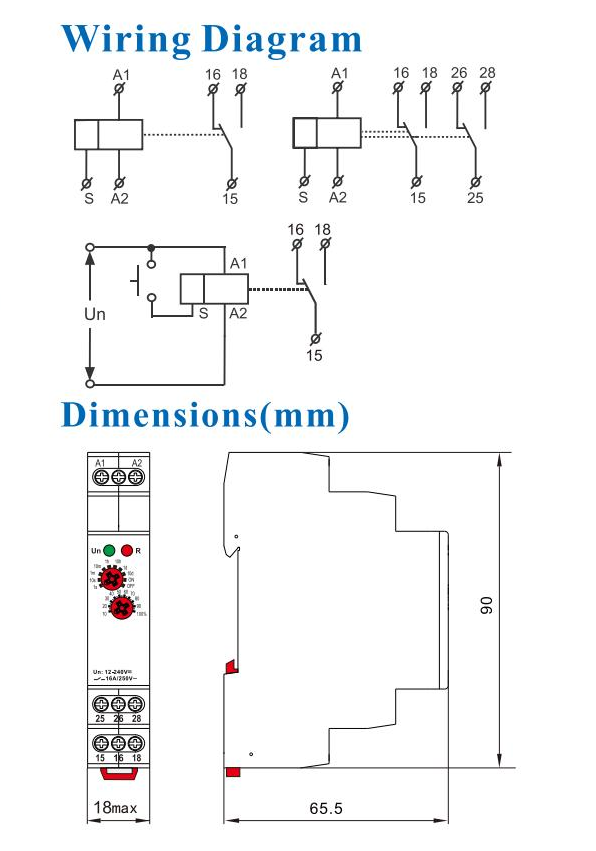

Supply terminalsA1-A2
Voltage range                     AC/DC12-240V(50-60Hz)
BurdenAC0.09-3VA/DC 0.05-1.7W
Supply voltage tolerance-15%;+10%
Supply indicationGreen LED
Time ranges0.1S to 10 Days,ON,OFF
Time settingpotentionmeter
Time deviation10%mechanical setting
Repeat accuracy0.29%set value stability
Temperature coecient               0.05%/℃ at=20℃
Output1×SPDT                   2×SPDT
Current rating                               16A/AC1
Switching voltag250VAC/24VDC
Min.breaking capacity DC500mW
Output indicationRed LED
Reset time                                 max.200ms
Operating temperature-20℃ to+55℃
Storage temperature-35℃ to+75℃
Mounting/DIN railDin RailEN/IEC 60715
Protection degreeIP40 for front panel/IP20 terminals
Operating positionany
Oyer yoltage category                           III
Pollution degree2
Max.cable  size(mm²)      solid wire max.1×2.5 or2×1.5/with sleeve max.1×2.5(awg 12)
Tightening storque0.4Nm
Dimensions                                90×18×64mm
Weight1×SPDT:W240-63g,A230-62g
2×SPDT:W240-63g,A230-62g
StandardsEN61812-A,IEC60947-5-1
