Double Delay Modular Time Relay
ATMTB-M2

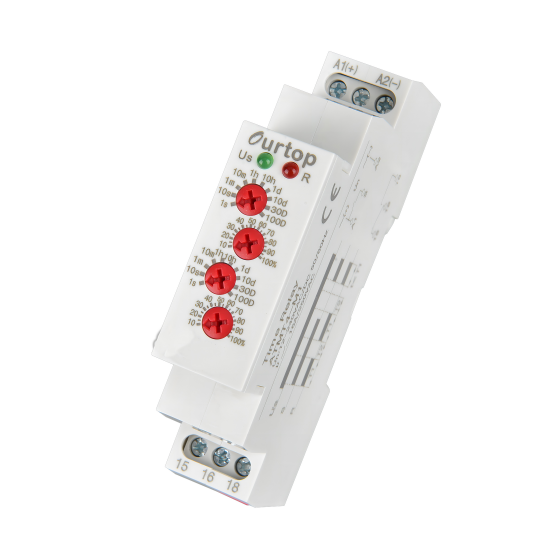

The Time Relay is a versatile and feature-rich device
2 Delay ON(2 time relays in one)Times tl and t2 are independantly adjustable.
Time scale 0.1S to 10 Days divided into 10 ranges.
Relay status is indicated by LED.
1Module.Din Rain mounting.
Double Delay Modular Time Relay
2 Delay ON(2 time relays in one)Times tl and t2 are independantly adjustable.
Time scale 0.1S to 10 Days divided into 10 ranges.
Relay status is indicated by LED.
1Module.Din Rain mounting.
Double Delay Modular Time Relay
Quantity:
Applications:
- For gradual switching ofheavy powers(e.g. el. heating), prevents current
strokes in the main.
Features

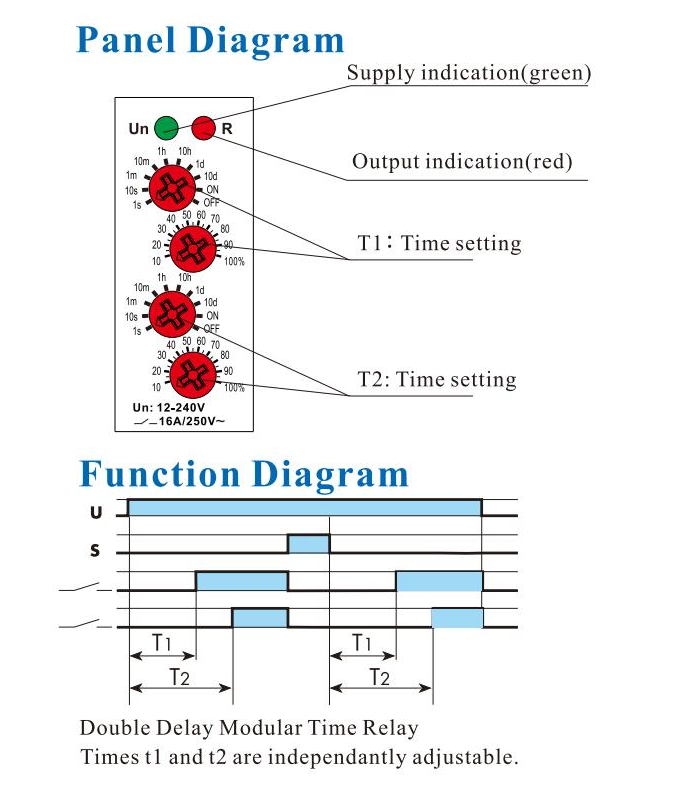

- 2 Delay ON(2 time relays in one)Times tl and t2 are independantly adjustable.
- Time scale 0.1S to 10 Days divided into 10 ranges.
- Relay status is indicated by LED.
- 1Module.Din Rain mounting.
- Double Delay Modular Time Relay
| Technical parameters | ATMTB-M2 | ||||||||
| Function Double Delay Modular Time Relay | |||||||||
| Supply terminals | A1-A2 | ||||||||
| Voltage range AC/DC12-240V(50-60Hz) | |||||||||
| Burden | AC0.09-3VA/DC0.05-1.7W | ||||||||
| Supply voltage tolerance | -15%;+10% | ||||||||
| Supply indication | Green LED | ||||||||
| Time ranges | 0.1S to 10 Days,ON,OFF | ||||||||
| Time setting | potentionmeter | ||||||||
| Time deviation 10%mechanical setting | |||||||||
| Repeat accuracy | 0.2%set value stability | ||||||||
| Temperature coecient 0.05%/℃at=20℃ | |||||||||
| Output | 2×SPDT | ||||||||
| Current rating 16A/AC1 | |||||||||
| Switching voltage | 250VAC/24VDC | ||||||||
| Min.breaking capacity DC 500mW | |||||||||
| Output indication | Red LED | ||||||||
| Reset time max.200ms | |||||||||
| Operating temperature | -20℃ to+55℃ | ||||||||
| Storage temperature | -35℃ to+75℃ | ||||||||
| Mounting/DIN rail | Din RailEN/IEC 60715 | ||||||||
| Protection degree IP40 for front panel/IP20 terminals | |||||||||
| Operating position | any | ||||||||
| Over voltage category III | |||||||||
| Pollution degree | 2 | ||||||||
| Max.cable size(mm²) solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(awg 12) | |||||||||
| Tightening storquc | 0.4Nm | ||||||||

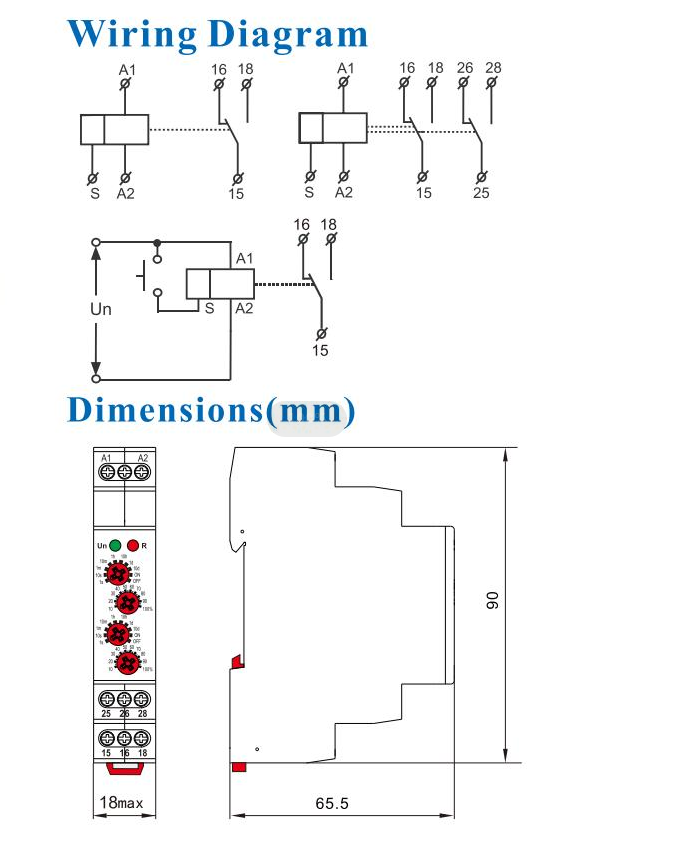

| Dimensions 90×18×64mm | |||||||||
| Weight | 1×SPDT:W240-63g,A230-62g | ||||||||
| 2×SPDT:W240-63g,A230-62g | |||||||||
| Standards | EN61812-A,IEC60947-5-1 | ||||||||
