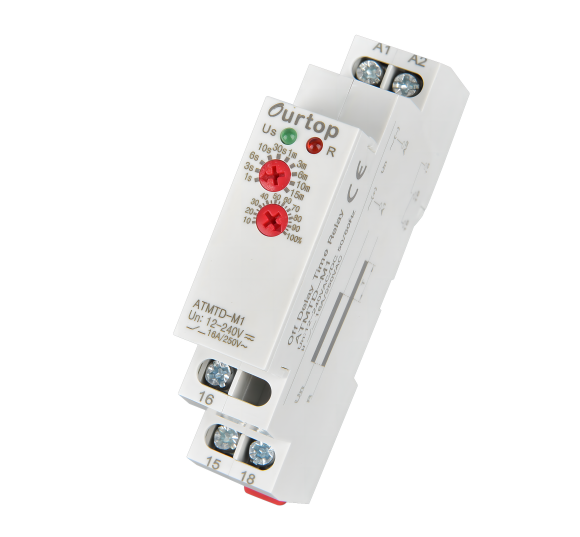

Delay OFF Without Supply Voltage Modular Time Relay
ATMTD-M1
The Time Relay is a versatile and feature-rich device.
Back-up source for Delay OFF in case of voltage failure(emergency light emergeney respirator, or proteetion of el. controlled doors- incase of fire)
Features

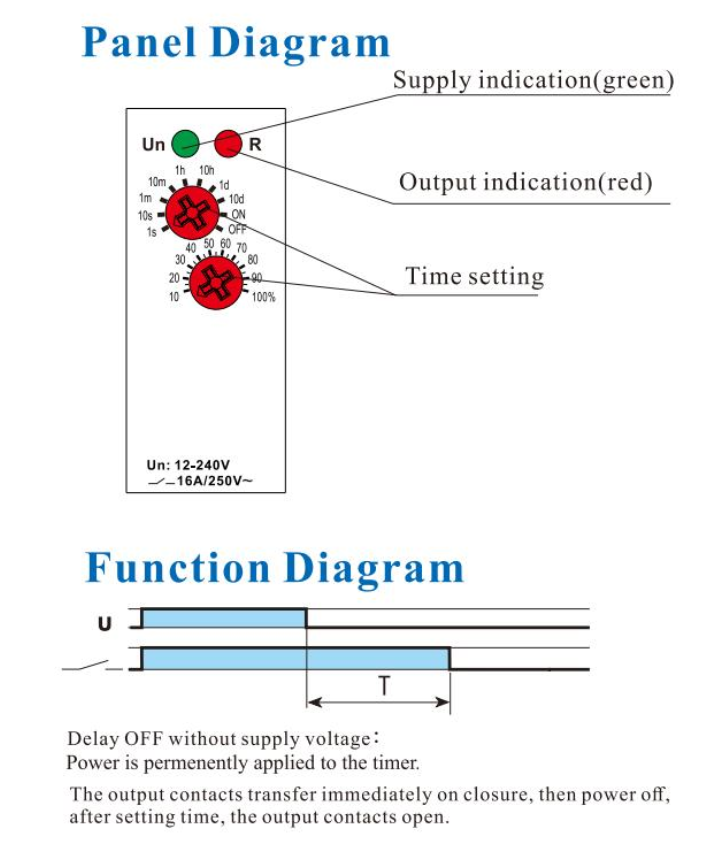

Time range (adjustable by potentiometer)0.1s -15min.
Relay status is indicated by LED.
1 Module, Din Rain mounting.
Delay OFF without supply voltage.
Back-up source for Delay OFF in case of voltage failure(emergency light emergeney respirator, or proteetion of el. controlled doors- incase of fire)
Features
Time range (adjustable by potentiometer)0.1s -15min.
Relay status is indicated by LED.
1 Module, Din Rain mounting.
Delay OFF without supply voltage.
Quantity:
Applications:
- Back-up source for Delay OFF in case ofvoltage failure(emergency light
emergeney respirator, or proteetion of el. controlled doors- inease of fire)
Features
- Time range (adjustable by potentiometer)0.1s -15min.
- Relay status is indicated by LED.
- 1 Module, Din Rain mounting.
- Delay OFF without supply voltage.

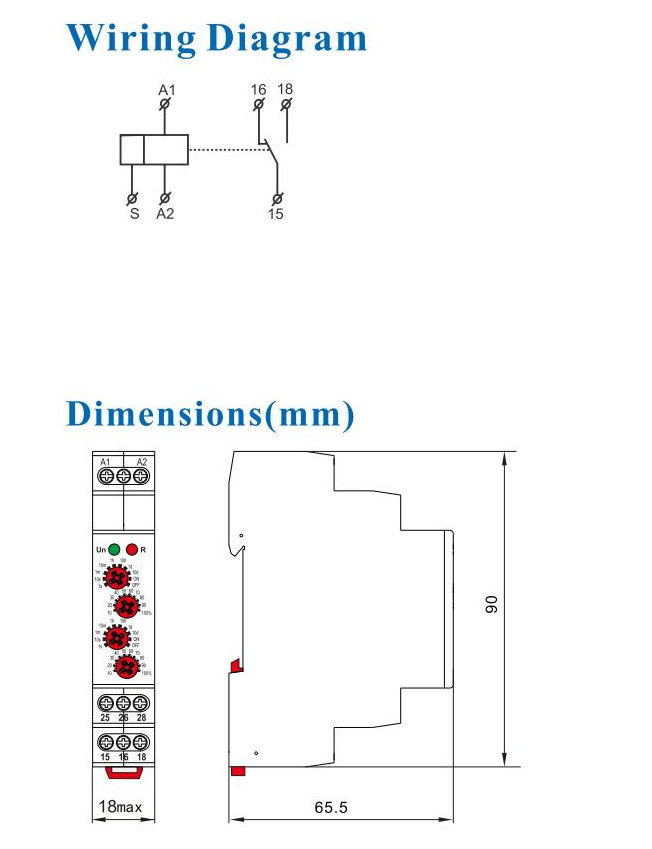

Technical parameters ATMTD-M1 Function Delay OFF without supply voltage. Supply terminals A1-A2 Voltage range AC/DC12-240V(50-60Hz) Burden AC0.09-3VA/DC0.05-1.7W Supply voltage tolerance -15%;+10% Supply indication Green LED Time ranges 0.1S to 15min Time setting potentionmeter Time deviation 10%mechanical setting Repeat accuracy 0.2%set value stability Temperature coecient 0.05%/℃at=20℃ Output 1×SPDT Current rating 16A/AC1 Switching voltage 250VAC/24VDC Min.breaking capacity DC 500mW Output indication Red LED Reset time max.200ms Operating temperature -20℃ to+55℃ Storage temperature -35℃ to+75℃ Mounting/DIN rail Din Rail EN/IEC 60715 Protection degree IP40 for front panel/IP20 terminals Operating position any Over voltage category III Pollution degree 2 Max.cable size(mm²) solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(awg 12) Tightening storquc 0.4Nm Dimensions 90×18×64mm Weight 1×SPDT:W240-63g,A230-62g 2×SPDT:W240-63g,A230-62g Standards EN61812-A,IEC60947-5-1
