On-Delay Modular Time

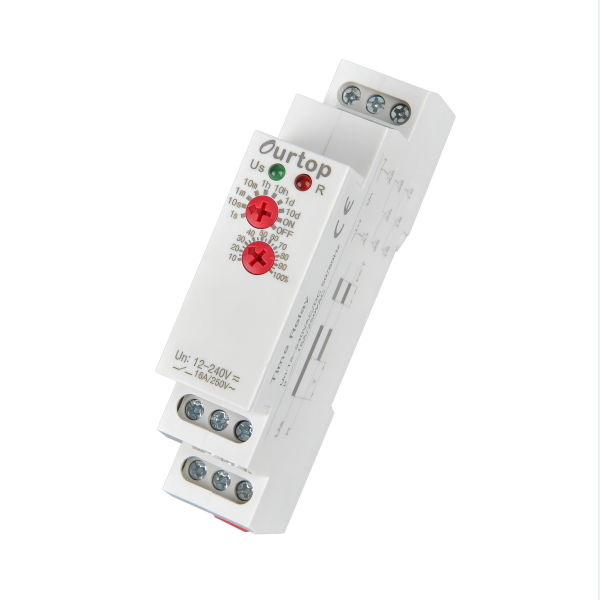

ATMT2-M1
The Relay is a versatile and feature-rich device.
Comfortable and well-arranged function and time-range setting by totary switches.
Time scale 0.1S to 10 Days divided into 10 ranges.
Relay status is indicated by LED.
1 Module,Din Rain mounting.
On-Delay
Comfortable and well-arranged function and time-range setting by totary switches.
Time scale 0.1S to 10 Days divided into 10 ranges.
Relay status is indicated by LED.
1 Module,Din Rain mounting.
On-Delay
Quantity:
Applications:
- Suitable for applications where function and time requirements are know.
Time switch, possible to be used for pump decay time after switchingheating of, switching of fans.
Features
- Comfortable and well-arranged function and time-range setting by totary switches.
- Time scale 0.1S to 10 Days divided into 10 ranges.
- Relay status is indicated by LED.
- 1 Module,Din Rain mounting.
- On-Delay

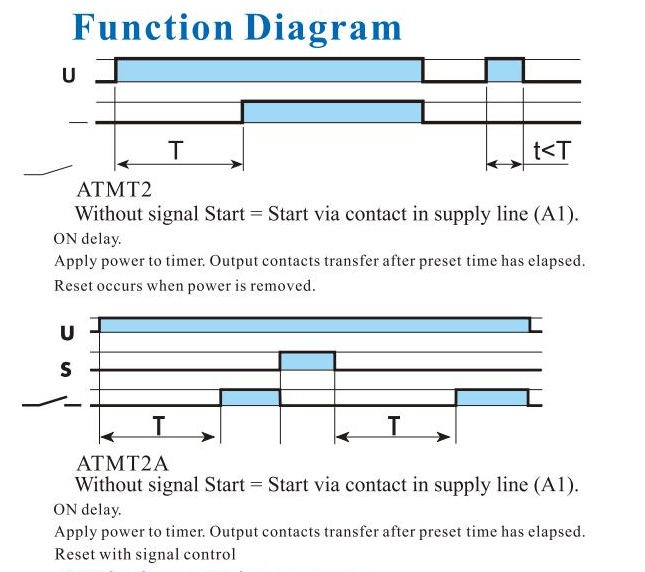

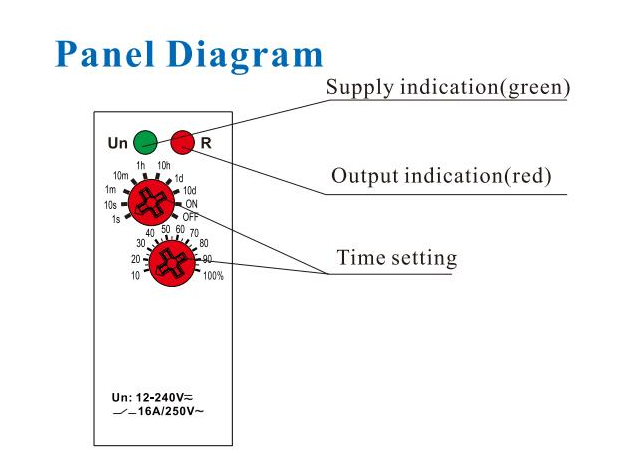

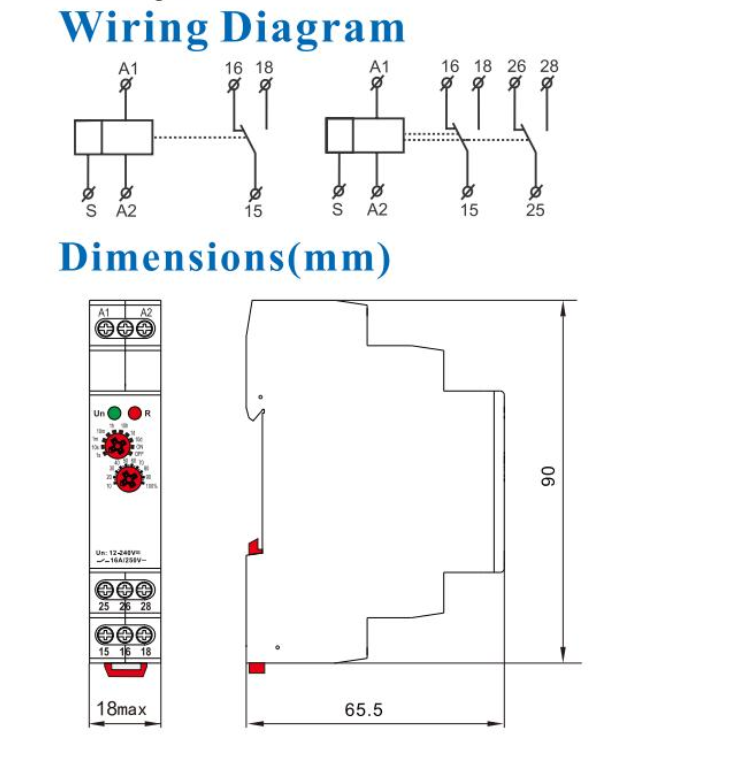

| Technical parameters | ATMT2-M1 | ATMT2-M2 | ||||||||||
| Function On-Delay | ||||||||||||
| Supply terminals | A1-A2 | |||||||||||
| Voltage range AC/DC12-240V(50-60Hz) | ||||||||||||
| Burden | AC0.09-3VA/DC0.05-1.7W | |||||||||||
| Supply voltage tolerance | -15%;+10% | |||||||||||
| Supply indication | Green LED | |||||||||||
| Time ranges 0.1S to 10 Days,ON,OFF | ||||||||||||
| Time setting | potentionmeter | |||||||||||
| Time deviation 10%mechanical setting | ||||||||||||
| Repeat accuracy | 0.2%set value stability | |||||||||||
| Temperature coecient 0.05%/℃at=20℃ | ||||||||||||
| Output | 1×SPDT 2×SPDT | |||||||||||
| Current rating 16A/AC1 | ||||||||||||
| Switching voltage | 250VAC/24VDC | |||||||||||
| Min.breaking capacity DC 500mW | ||||||||||||
| Output indication | Red LED | |||||||||||
| Reset time max.200ms | ||||||||||||
| Operating temperature | -20℃ to+55℃ | |||||||||||
| Storage temperature | -35℃ to+75℃ | |||||||||||
| Mounting/DIN rail | Din Rail EN/IEC 60715 | |||||||||||
| Protection degree IP40 for front panel/IP20 terminals | ||||||||||||
| Operating position | any | |||||||||||
| Over voltage category III | ||||||||||||
| Pollution degree | 2 | |||||||||||
| Max.cable size(mm²) solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(awg 12) | ||||||||||||
| Tightening storquc | 0.4Nm | |||||||||||
| Dimensions 90×18×64mm | ||||||||||||
| Weight | 1×SPDT:W240-63g,A230-62g | |||||||||||
| 2×SPDT:W240-63g,A230-62g | ||||||||||||
| Standards | EN61812-A,IEC60947-5-1 | |||||||||||
