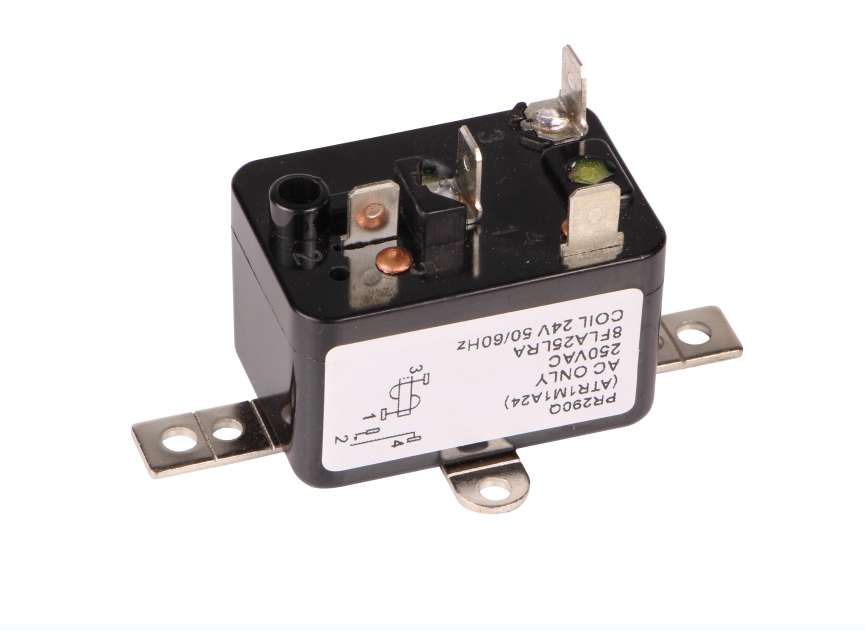

High Power/Fan Relay
ATR1
The Relay is a versatile and feature-rich device
1)16A switching capability
2)2.$kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(ROHS COMPLIANT)

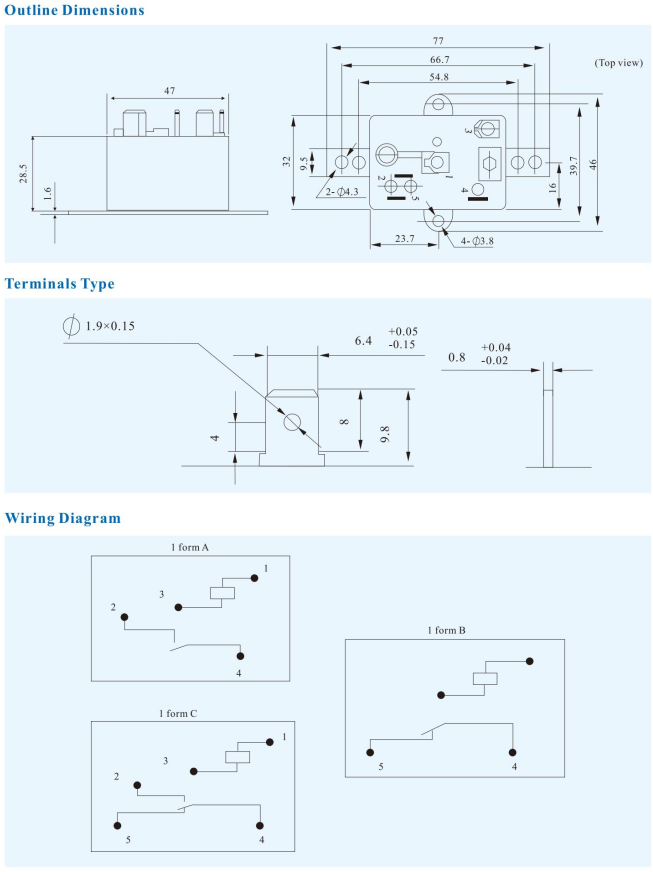

5)Outline Dimensions:47.0x32.0x28.5mm
1)16A switching capability
2)2.$kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(ROHS COMPLIANT)
5)Outline Dimensions:47.0x32.0x28.5mm
Quantity:
Features
The Relay is a versatile and feature-rich device
1)16A switching capability
2)2.$kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(ROHS COMPLIANT)
5)Outline Dimensions:47.0x32.0x28.5mm
1)16A switching capability
2)2.$kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(ROHS COMPLIANT)
5)Outline Dimensions:47.0x32.0x28.5mm
| type | mount | contact arrangement | coil voltage form | coil voltage | cunstomer special code | ||||||||
| ATR | 1 | M | D | 24 | |||||||||
| Metal Bracket | 1:Forma A 2:Forma B 3:Forma C | D:DC A:AC | AC:6TO 227VAC DC:6TO 120VDC | ||||||||||
| Contact arrangement | 1A,1B,1C | |||||||||||||||
| Contact resistance | 50mΩ max.(at 1A 24VDC) | |||||||||||||||
| Contact Materia | Silyer alloy | |||||||||||||||
| Contact rating (Res.Load) | Form A:16A 250VAC,resistive load | |||||||||||||||
| Form B:8A 250VAC,general load | ||||||||||||||||
| Form C:16A 250VAC,resistive load | ||||||||||||||||
| Max Switching Voltage | 250VAC | |||||||||||||||
| Max.Switching Current | 16A | |||||||||||||||
| Max.Switching Power: | 4000VAC | |||||||||||||||
| Mechanical endurance | 1×10°OPS | |||||||||||||||
| Electrical endurance: | Form A:SPST-NO 1×10³OPS(16A 250VAC,Resistive load,at 65℃1s on 9s off) | |||||||||||||||
| Form B:SPST-NC 3×10⁴OPS(8A 250VAC,General use,at 40℃ 1s on 9s off) | ||||||||||||||||
| Form C:SPDT-NO+NC1×10⁵OPS(16A 250VAC,Resistive load,at 65℃1s on 9s off) | ||||||||||||||||
| Insulation resistance | 500MΩ max.(at500VDC) | Vibration resistance | 10Hzto 55Hz2.54mm DA | |||||||||||||||||||
| Dielectric strengtt | Between coil &contacts | 2500VAC 1min | Ambient temperature | -40℃ to 65℃ | ||||||||||||||||||
| Between open contact | 1000VAC 1min | Humidity | 5%to 85%RH | |||||||||||||||||||
| Operate time(at nomi.Volt.) | DC type:25ms Max. | Termination | QC | |||||||||||||||||||
| Release time(at nomil.Volt.) | DC type:25ms Max. | Unit weight | Approx.71g | |||||||||||||||||||
| Temperature rese(at nomil.Volt.) | 90K Max | Construction | Dust protected | |||||||||||||||||||
| Shock resistance(Functional) | 147m/s²11ms | Notes:The data shown above are initial values. | ||||||||||||||||||||
| Coil Data At 23℃ | ||||||||||||||||||||||
| Nominal Voltage VDC | Pick-up Voltage VDC max | Drop-out Voltage VDC min | Max.Voltage VDC | Coil Resistance Ω | Nominal Voltage VAC | Pick-up Voltage VAC max | Drop-out Voltage VAC min | Max.Voltage VAC | Coil Resistance Ω | |||||||||||||
| 6 | 4.50 | 0.6 | 6.6 | 17.5×(1±10%) | 6 | 5.1 | 1.2 | 6.6 | 4.8×(1±10%) | |||||||||||||
| 9 | 6.75 | 0.9 | 9.9 | 40×(1±10%) | 12 | 10.2 | 2.4 | 13.2 | 19×(1±10%’ | |||||||||||||
| 12 | 9.00 | 1.2 | 13.2 | 70×(1±10%) | 24 | 20.4 | 4.8 | 26.4 | 90×(1±10%) | |||||||||||||
| 48 | 40.6 | 9.6 | 52.8 | 300×(1±10%) | ||||||||||||||||||
| 24 | 18.00 | 2.4 | 26.4 | 280×(1±10%) | ||||||||||||||||||
| 120 | 102.0 | 24 | 132 | 2000×(1±10%) | ||||||||||||||||||
| 48 | 36.00 | 4.8 | 52.8 | 1120×(1±10% | ||||||||||||||||||
| 240 | 204.0 | 48 | 264 | 7200×(1±10%) | ||||||||||||||||||
| 120 | 90.00 | 12 | 132 | 7000×(1±10%) | 277 | 235.0 | 55.4 | 304.7 | 11000×(1±10%) | |||||||||||||
