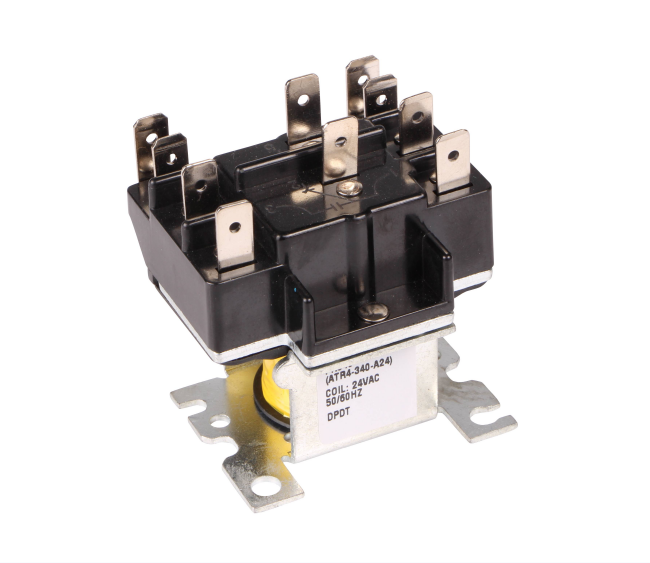

Switching Relay

ATR4

The Relay is a versatile and feature-rich device
1)2 POLE switching relay.
2)CONTACT: DPDT
3)250#Quick conneet termination
4)Used on heat pumps, vending machines,fans,
and heating and air conditioning

Quantity:

Contact Now

add to cart

Features

1)2 POLE switching relay.

2)CONTACT: DPDT
3)250#Quick conneet termination
4)Used on heat pumps, vending machines,fans,
and heating and air conditioning

Ordering Information		Characteristics
Aultop Relay	Type	Coil Voltage Form		Coil Voltage		Cunstomer Special Code		Weight:			Approx.160g
ATR	4	A		340		Termination:					QC
		A:AC D:DC,		340:24V 341:110/120V 342:208/240V
						Construction:					Dust protected
RTNO.		Contact Voltage Vac	Amp				Coil Voltage Vac		Contact Style	Configurations
			FLA		LRA	Res.				Poles		Poles
										1-2-3		4-5-6
ATR4-340		125	12		60	15	24		DPDT	Power		Power
		250-277	6		35	15
		480	3		18	12.5
		600	3		14	-
ATR4-341		125	12		60	15	120		DPDT	Power		Power
		250-277	6		35	15
		480			18	12.5
		600	3		14	-
ATR4-342		125	12		60	15	208-240		DPDT	Power		Power
		250-277	6		35	15
		480	3		18	12.5
		600	3		14
ATR4-343		125	12		60	15	24		DPDT	Power		Pilot
		250-277	6		35	15
		480	3		18	12.5
		600	3		14	一
ATR4-344		125	12		60	15	120		DPDT	Powei		Pilot
		250-277	6		35	15
		480	3		18	12.5
		600	3		14
ATR4-345		125	12		60	15	208-240		DPDT	Power		Pilot
		250-277	6		35	15
		480	3		18	12.5
		600	3		14
