Air Conditional Relay

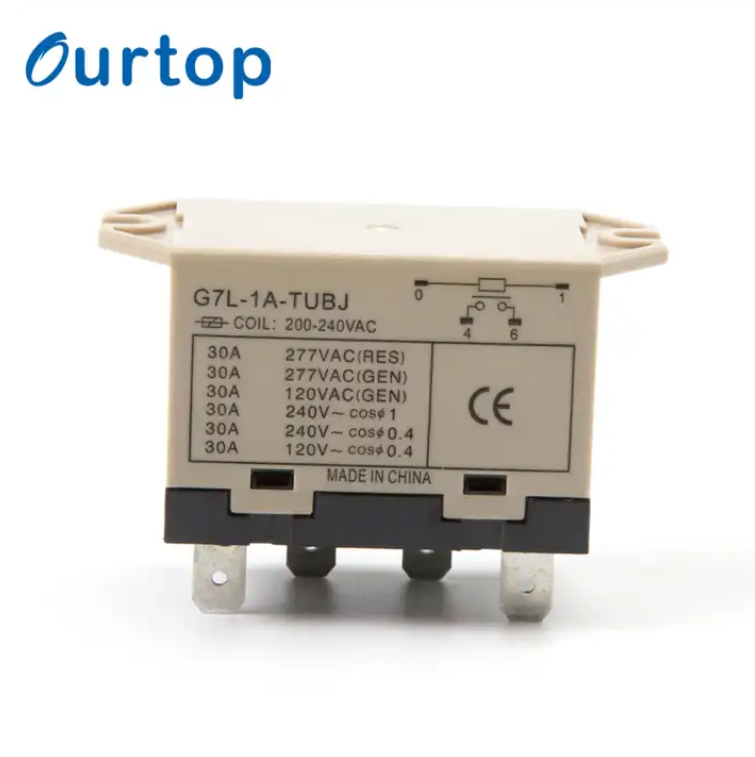

ATRG7L
1)A High-capacity, High-dieleetric-strength relay,Compatiblewith Momentary Vlotage Drops
2)Wide-range AC-activated coil that handles 100 to 120 or 200to 240VAC at either 50 or 60Hz
3)250# quick connect termination
4) Miniatre size for maximum switching power,particularly forinductive loads
2)Wide-range AC-activated coil that handles 100 to 120 or 200to 240VAC at either 50 or 60Hz
3)250# quick connect termination
4) Miniatre size for maximum switching power,particularly forinductive loads
Quantity:
Features
1)A High-capacity, High-dieleetric-strength relay,Compatiblewith Momentary Vlotage Drops

2)Wide-range AC-activated coil that handles 100 to 120 or 200to 240VAC at either 50 or 60Hz
3)250# quick connect termination
4) Miniatre size for maximum switching power,particularly forinductive loads
| Ordering Information | ||||||||||||||||||||
| Aultop Relay | Type | Number Of Poles | Contact Form | Terminal Shap | Mounting Construction | Special Functions | ||||||||||||||
| ATR | G7L | 1 | A | T | UB | J | ||||||||||||||
| 1:1POLE 2:2POLE | SPST-NO DPST-NO | Quick connect terminals(250#) | Upper bracket | with test button | ||||||||||||||||
| Contact Data | Characteristics | |||||||||||||||||||
| Contact Form | ATR-G7L-1A-TUB | ATR-G7L-2A-TUB | Weight: | Approx.90g | ||||||||||||||||
| Load Resistive load | Inductive load (Cosí=0.4) | Resistive load | Inductive load | Termination: | QC | |||||||||||||||
| Construction: | Dust protected | |||||||||||||||||||
| Item | Double Break | |||||||||||||||||||
| Contact Type Contact Material Rated Load | Ag Alloy | Ambient Operationg Temperature | -25℃ to 60℃ (with no icing or condensation) | |||||||||||||||||
| 30A at 220VAC25A at 220VAC | 25A at 220VAC | |||||||||||||||||||
| 30A | 25A | |||||||||||||||||||
| Rated Carry Current | 250VAC | |||||||||||||||||||
| Max.Switching Current | 30A | 25A | ||||||||||||||||||
| Coil Ratings | ||||||||||||||||||||
| Item | Raated Current (ma) | Coil Resistance (Ω) | Coil Inductance (h) | Must Operate Voltage | Must Release Voltage | Max Permissible Voltage | Power Consumption (va-w) | |||||||||||||
| Rated Voltage | Armature ON | Armature OFF | On The Bases Of Rated Voltage | |||||||||||||||||
| 12VAC | 142 | 75%Max | 15%Min | 110% | Approx.1.7to 2.5 | |||||||||||||||
| 24VAC | 71 | |||||||||||||||||||
| 50VAC | 34 | |||||||||||||||||||
| 100-120VAC | 17.0 to 20.4 | 75V Max | 18V Min | 132V | ||||||||||||||||
| 200-240VAC | 8.5 to 10.2 | 150V Max | 36V Min. | 264V | ||||||||||||||||
| 6VDC | 317 | 18.9 | 0.09 | 0.21 | 75%Max | 15%Min | 110% | Approx.Ig | ||||||||||||
| 12VDC | 158 | 75 | 0.37 | 0.88 | ||||||||||||||||
| 24VDC | 79 | 303 | 1.42 | 3.54 | ||||||||||||||||
| 48VDC | 40 | 1220 | 6.1 | 15.3 | ||||||||||||||||
| 100VDC | 19 | 5260 | 21.3 | 60.0 | ||||||||||||||||
| Note: | ||||||||||||||||||||
| 1.The rated current and coil resistance are measured at a coil temperature of 23℃ with tolerances of+15%/-20%for AC rated current and 15%for DC coil resistance. 2.The inductances shown above are reference values. | ||||||||||||||||||||
| 3.Performance characteristic data are measured at a coil temperature of 23℃. | ||||||||||||||||||||
| 4.The Maximum allowable coil valtage refers to the maximum value in varyhing range of operationg power voltage,measured at ambient temperature at 23℃. 5.The"to"(for example"100"to"120")repersents the range of rated voltages. |
