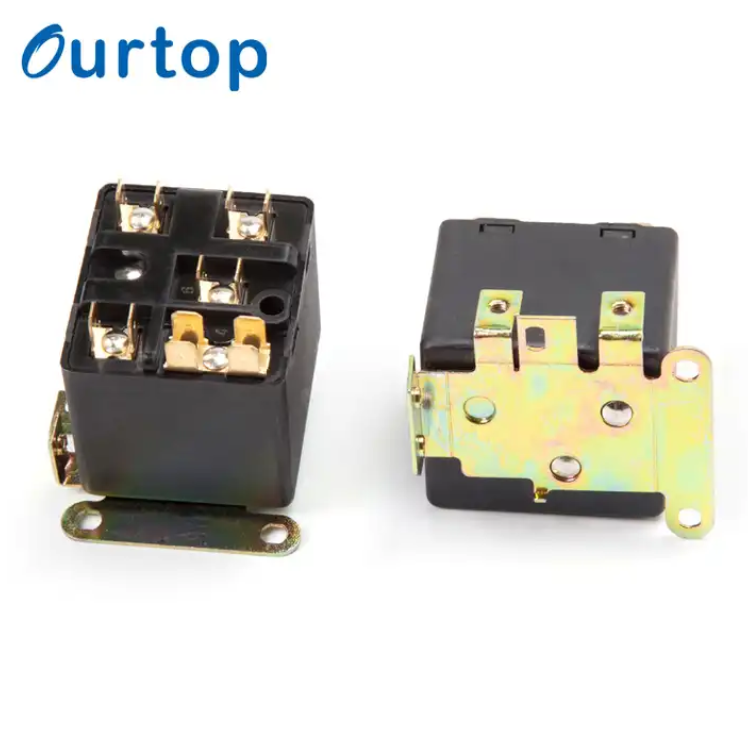

Potential Relay
ATR5
The Relay is a versatile and feature-rich device
1) 35A switching capability
2)1 NC configuration available
3)Quick connect termination
4)Various ofmounting posibtions
5) Used on heat pumps, vending machines,fans, and heating
and air conditioning
1) 35A switching capability
2)1 NC configuration available
3)Quick connect termination
4)Various ofmounting posibtions
5) Used on heat pumps, vending machines,fans, and heating
and air conditioning
Quantity:
Features:
1) 35A switching capability
2)1 NC configuration available
3)Quick connect termination
4)Various ofmounting posibtions
5) Used on heat pumps, vending machines,fans, and heating
and air conditioning
2)1 NC configuration available
3)Quick connect termination
4)Various ofmounting posibtions
5) Used on heat pumps, vending machines,fans, and heating
and air conditioning
| Ordering Information: | |||||||||||||
| Aultop Relay | Type | Coil Voltage Form | Coil Voltage | Cunstomer Special Code | |||||||||
ATR | 5 | 63 | A A:AC D:DC | ||||||||||
| 63:170V 64:395V | 65:332V 66:395V | 67:420V 68:500V | 69:336V 70:253V | 71:420V 550:130V | 551:332V | ||||||||
| RT NO. | Coil Voltage Vac | Pick Up Min. | Pick Up Max. | Drop-out Max | |||||||||
| ATR563A | 170 | 136 | 156 | 58 | |||||||||
| ATR564A | 395 | 257 | 278 | 123 | |||||||||
| ATR565A | 332 | 165 | 185 | 93 | |||||||||
| ATR566A | 395 | 210 | 230 | 123 | |||||||||
| ATR567A | 420 | 292 | 318 | 130 | |||||||||
| ATR568A | 500 | 322 | 348 | 138 | |||||||||
| ATR569A | 336 | 177 | 198 | 108 | |||||||||
| ATR570A | 253 | 152 | 176 | 80 | |||||||||
| ATR571A | 420 | 209 | 235 | 124 | |||||||||
| ATR5550A | 130 | 111 | 134 | 42 | |||||||||
| ATR5551A | 332 | 243 | 271 | 91 | |||||||||
| Characteristics | |||||||||||||
| Weight: | Approx.95g | ||||||||||||
| Termination: | QC | ||||||||||||
| Construction: | Dust protected | ||||||||||||
