High Power/ Fan Relay
ATR2

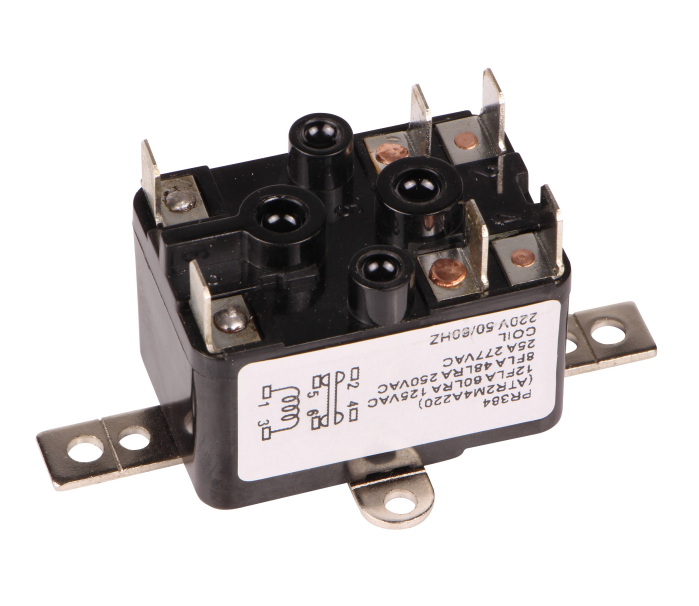

The Relay is a versatile and feature-rich device
1)25A switching capability
2)2kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(RoHS COMPLIANT)

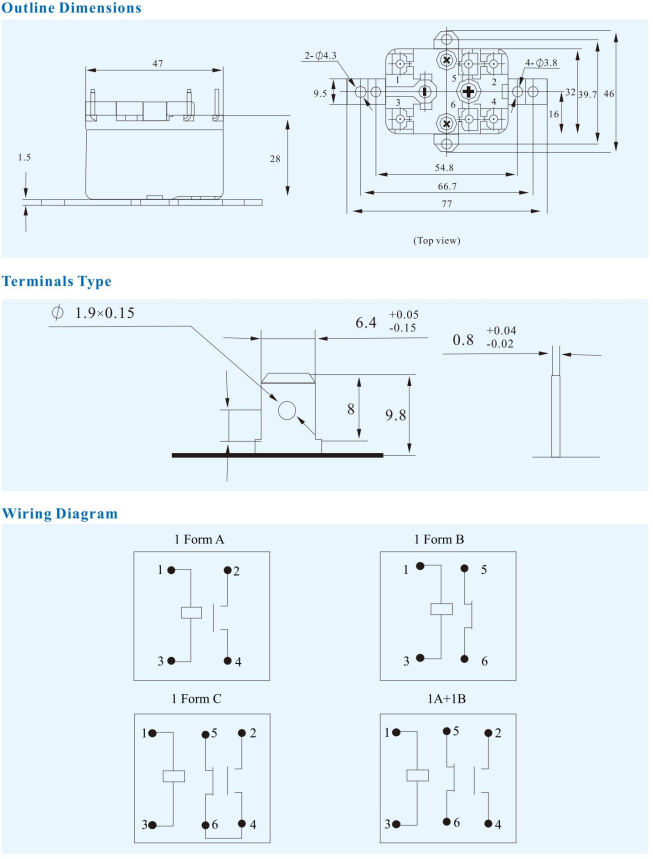

5)Outline Dimensions: 47.0 x32.0 x28.5mm
1)25A switching capability
2)2kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(RoHS COMPLIANT)
5)Outline Dimensions: 47.0 x32.0 x28.5mm
Quantity:
Features
1)25A switching capability
2)2kV dielectric strength(between coil and contacts)
3)Panel mount types available
4)Environmental friendly product(RoHS COMPLIANT)
5)Outline Dimensions: 47.0 x32.0 x28.5mm
3)Panel mount types available
4)Environmental friendly product(RoHS COMPLIANT)
5)Outline Dimensions: 47.0 x32.0 x28.5mm
| Ordering Information | ||||||||||||||
| Aultop Relay | Type | Mount | Contact Arrangement | Coil Voltage Form | Coil Voltage | Cunstomer Special Code | ||||||||
| ATR | 2 | M | 1 | D | 24 | |||||||||
| Metal Bracket | 1:Forma 2:Forma 3:Forma 4:1A+1B | A B C | D:DC A:AC | AC:6 TO227VAC DC:6 TO 120VDC | ||||||||||
| Contact Arrangement: | 1A,1B,1C,1A+1B | |||||||||||
| Contact Resistance: | 200mΩ max. (at 1A 24VDC) | |||||||||||
| Contact Material | AgCdO | |||||||||||
| Contact Rating (res.Load) | 18A227VAC | |||||||||||
| Max.Switching Voltage: | 277VAC | |||||||||||
| Max.Switching Current: | 18A | |||||||||||
| Max.Switching Power: | 4986VA | |||||||||||
| Mechanical Endurance: | 1×10°OPS | |||||||||||
| Electrical Endurance: | 5×10⁴OPS(25A227VAC,Resistive load,at 65℃1s on 9s off) | |||||||||||
| 3×10⁴OPS(3A250VAC,General use,at 65℃Is on 9s off) | ||||||||||||
| Coil Power | |||||
| DC type:2.4W;AC type:4.0VA | |||||
| Characteristics | ||||||||||||||||||||||
| Insulation Resistance | 500MΩ max. (at500VDC) | Vibration Resistance | 10Hz to 55Hz 0.55mm DA | |||||||||||||||||||
| Dielectric Strength | Between Coil &Contacts | 2500VAC 1min | Ambient Temperature | -40Cto 65℃ | ||||||||||||||||||
| Between Open Contact | 1000VAC 1min | Humidity | 5%to 85%RH | |||||||||||||||||||
| Operate Time(at Nomi.Volt.) | DC type:25ms Max. | Termination | QC | |||||||||||||||||||
| Release Time(at Nomil.Volt.) | DC type:25ms Max. | Unit Weight | Approx.74g | |||||||||||||||||||
| Temperature Rese(at Nomil.Volt.) | 90K Max. | Construction | Dust protected | |||||||||||||||||||
| Shock Resistance(functional) | 98m/s211ms | Notes:The data shown above are initial values. | ||||||||||||||||||||
| Coil Data At 23℃ | ||||||||||||||||||||||
| Nominal Voltage VDC | Pick-up Voltage VDC max. | Drop-out Voltage VDC min. | Max.Voltage VDC | Coil Resistance Ω | Nominal Voltage VAC | Pick-up Voltage VAC max. | Drop-out Voltage VAC min. | Max.Voltage VAC | Coil Resistance Ω | |||||||||||||
| 6 | 4.50 | 0.6 | 6.6 | 17.5×(1±10%) | 6 | 5.1 | 1.2 | 6.6 | 4.8×(1±10%) | |||||||||||||
| 9 | 6.75 | 0.9 | 9.9 | 40×(1±10%) | 12 | 10.2 | 2.4 | 13.2 | 19×(1±10%) | |||||||||||||
| 12 | 9.00 | 1.2 | 13.2 | 70×(1±10%) | 24 | 20.4 | 4.8 | 26.4 | 90×(1±10%) | |||||||||||||
| 48 | 40.6 | 9.6 | 52.8 | 300×(1±10%) | ||||||||||||||||||
| 24 | 18.00 | 2.4 | 26.4 | 280×(1±10%) | ||||||||||||||||||
| 120 | 102.0 | 24 | 132 | 2000×(1±10%) | ||||||||||||||||||
| 48 | 36.00 | 4.8 | 52.8 | 1120×(1±10%) | 240 | 204.0 | 48 | 264 | 7200×(1±10%) | |||||||||||||
| 120 | 90.00 | 12 | 132 | 7000×(1±10%) | 277 | 235.0 | 55.4 | 304.7 | 11000×(1±10%) | |||||||||||||
| Note:Maximum voltage refers to the maximum voltage which relay coiol could endure in ashort preiod of time | ||||||||||||||||||||||
