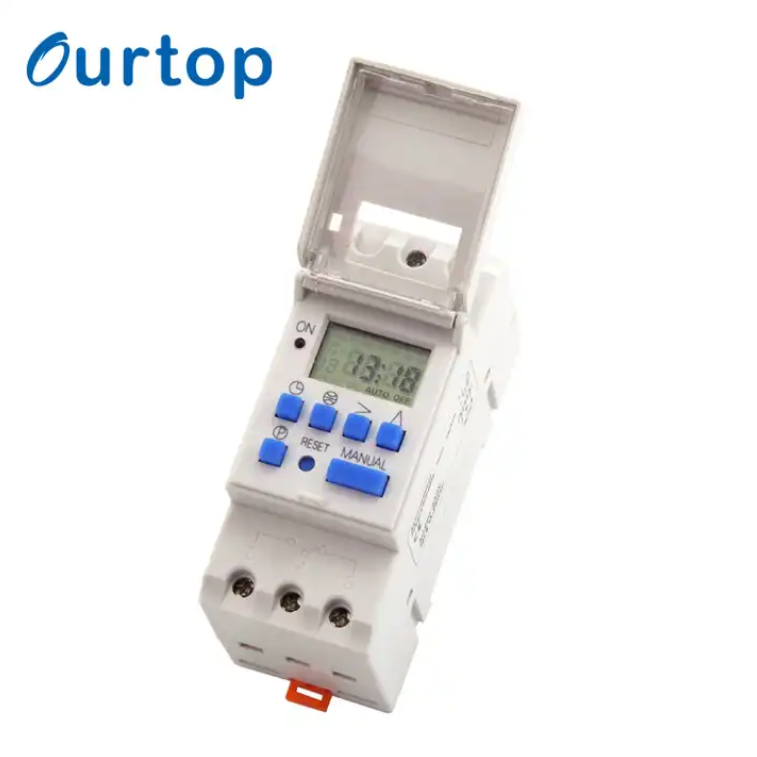

Astronomical Timer
ATHC15T
DIN RAlLinstallation
LCD display
8 ON/OFF programs
Lithium battery power reserve 3 year,
when electric supply cut off
Automatically adjust the set time along with seasonal variation to control ON/OFF for lighting on purpose of realizing that light is turned on when sun sets & turned off whensun rises.
LCD display
8 ON/OFF programs
Lithium battery power reserve 3 year,
when electric supply cut off
Automatically adjust the set time along with seasonal variation to control ON/OFF for lighting on purpose of realizing that light is turned on when sun sets & turned off whensun rises.
Quantity:
Function
- DIN RAlL installation
- LCD display
- 8 ON/OFF programs
- Lithium battery power reserve 3 year,
when electric supply cut off
- Automatically adjust the set time along with seasonal variation to control ON/OFF
for lighting on purpose of realizing that light is turned on when sun sets & turned off whensun rises.
| Technical data | ||||
| Voltage rating:AC220V 50/60Hz Voltage limit:AC 180V~250V Hysteresis:≤2sec/day(25℃) | Switching power:16A 250VAC(cosφ=1) | |||
| 10A 250VAC(cosp=0.6) | ||||
| Incandescent lamp load:2300W Halogen lamp load:2300W | ||||
ON/OFF operation: 8 ON & 8 OFF Power consumption:5VA(max) | ||||
| Dispaly:LCD | 1000VA,Parallel compensated 400VA(42μf) | |||
| Switching contact:1 changeover switch Power reserve:3 years(lithium battery) | ||||
| Minimum interval:minute(pulse/cycle 1 s) Weight:approx150g Time basis:quartz | ||||
| Ambient humidity:35~85%rh | ||||
| Ambient temperature:-10~+40℃ | ||||
