Analogue/Mechanical Time Switch；programmable timer switch；Multiple switching segments

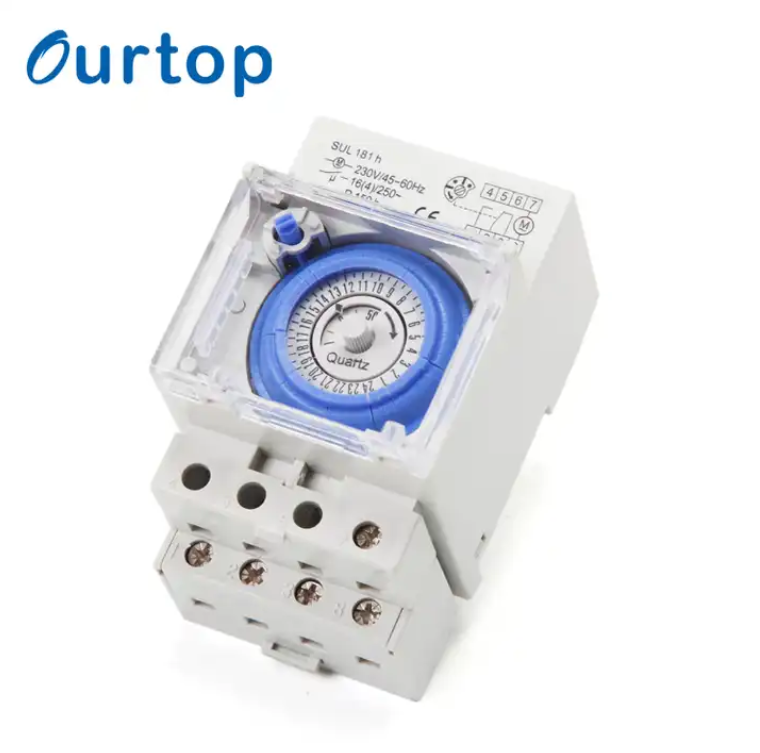

Analogue time switches-3 modules-segments, DIN-rail

SUL180h
Analogue time switch, l channel
daily/24 hours program
48 switching segments
DIN rail installation
Synchronised with mains
Shortest switching time: 30 Minutes
With power reserve l50 hours
SUL18lh with battery reserve
SULl6lh without battery reserve
Quantity:
Contact Now
add to cart
Common function


  • Analogue time switch, l channel
  • daily/24 hours program
  • 48 switching segments
  • DIN rail installation
  • Synchronised with mains
  • Shortest switching time: 30 Minutes
  • With power reserve l50 hours
  • SUL18lh with battery reserve
  • SULl6lh without battery reserve

Technical data
Voltage rating:110-230VAC 50/60Hz

Voltage  limit:100-240VAC

Width:3  Modules
Installation     type:DIN-rail
Program:Daily(24   hours)program
Power reserve:150  hours
Max.switching  capacity  at  250vac,cosφ=1:    16A
Max.switching  capacity  at  250vac,cosφ=0.6:4A
Shortest  switching  time:30minutes
Programmable  every:30  minutes
Time      accuracy:≤±1s/day(Quartz)

Power consumption:1 VA
Ambient        temperature:-20℃~+55℃
Manual switch with 2 positions:AUTO/Permanent OFF
