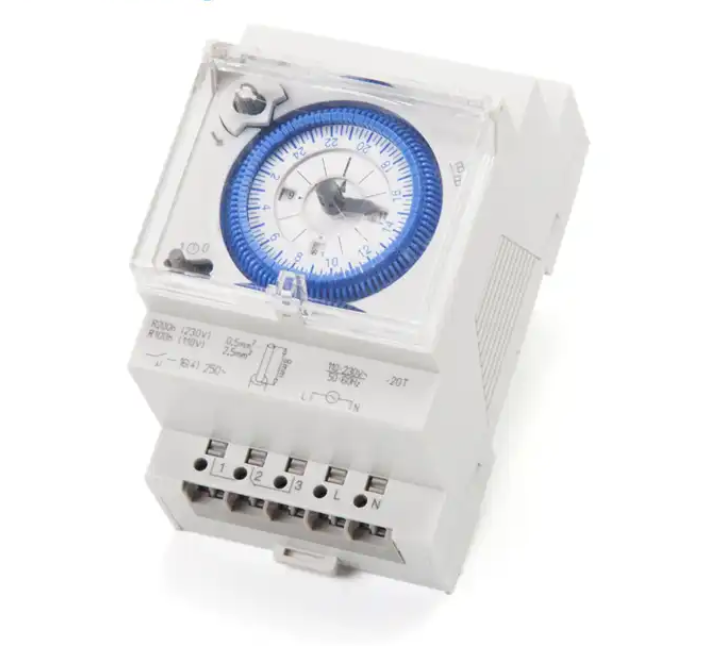

Analogue time switches-3 modules-segments, DIN-rail
SUL181d
Analogue time switch, 1 channel
daily/24 hours program
96 switching segments
DIN rail installation
Synchronised with mains
Shortest switching time: 15 Minutes
With power reserve 200 hours
SUL18ld with battery reserve
SULl6ld without battery reserve
daily/24 hours program
96 switching segments
DIN rail installation
Synchronised with mains
Shortest switching time: 15 Minutes
With power reserve 200 hours
SUL18ld with battery reserve
SULl6ld without battery reserve
Quantity:
Common function
- Analogue time switch, 1 channel
- daily/24 hours program
- 96 switching segments
- DIN rail installation
- Synchronised with mains
- Shortest switching time: 15 Minutes
- With power reserve 200 hours
- SUL18ld with battery reserve
- SULl6ld without battery reserve
| Technical data | ||||
| Voltage rating:110-230VAC 50/60Hz Voltage limit:100-240VAC Width:3 Modules | ||||
| Installation type:DIN-rail | ||||
| Program:Daily(24 hours)program Power reserve:200 hours | ||||
| Max.switching capacity at 250vac,cosφ=1: 16A Max.switching capacity at 250vac,cosφ=0.6:4A Shortest switching time:15 minutes Programmable every:15 minutes | ||||
| Time accuracy:≤±1s/day(Quartz) Power consumption:1 VA | ||||
| Ambient temperature:-20℃~+55℃ DuoFix spring terminals | ||||
| Manual switch with 3 positions:Permanent ON/AUTO/Permanent OFF |
