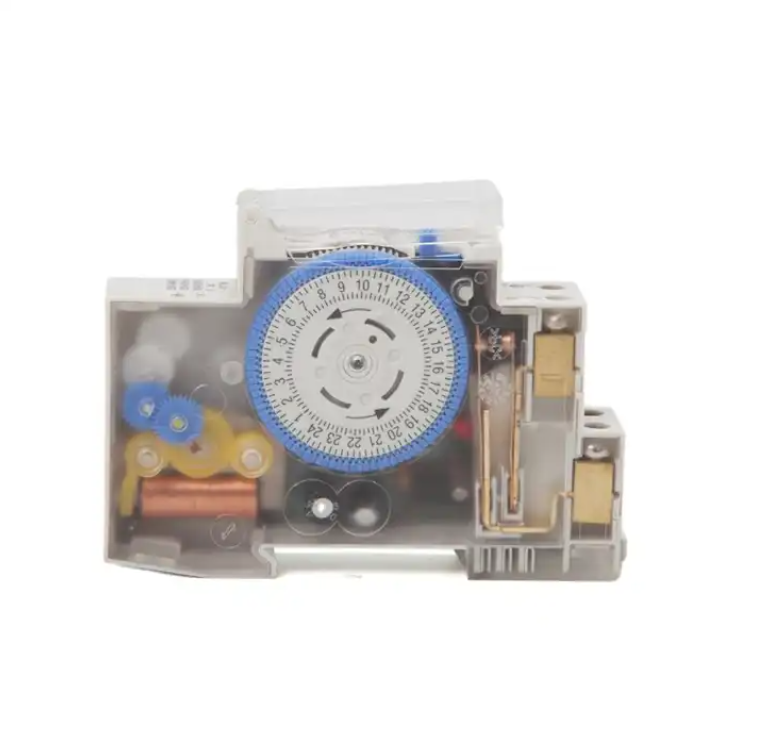

Analogue time switch with segments, DIN-rail，1 module
SUL180a
Analogue time switch, l channel
daily/24 hours program
96 switching segments
DIN rail installation
Synchronised with mains
Shortest switching time: 15 Minutes
With power reserve 72 hours
SUL180a with battery reserve
SUL160a without battery reserve
daily/24 hours program
96 switching segments
DIN rail installation
Synchronised with mains
Shortest switching time: 15 Minutes
With power reserve 72 hours
SUL180a with battery reserve
SUL160a without battery reserve
Quantity:
Common function
- Analogue time switch, l channel
- daily/24 hours program
- 96 switching segments
- DIN rail installation
- Synchronised with mains
- Shortest switching time: 15 Minutes
- With power reserve 72 hours
- SUL180a with battery reserve
- SUL160a without battery reserve
| Voltage rating:230VAC 50/60Hz Voltage limit:200-240VAC Width:1 Modules | |||
| Installation type:DIN-rail | |||
| Program:Daily(24 hours)program Power reserve:72 hours | |||
| Max.switching capacity at 250vac,cosφ=1: 16A Max.switching capacity at 250vac,cosφ=0.6:4A Shortest switching time:15 minutes Programmable every:15 minutes | |||
| Time accuracy:≤±1s/day(Quartz) Power consumption:1 VA | |||
| Ambient temperature:-20℃~+55℃ DuoFix spring terminals | |||
| Manual switch with 3 positions:Permanent ON/AUTO/Permanent OFF |
