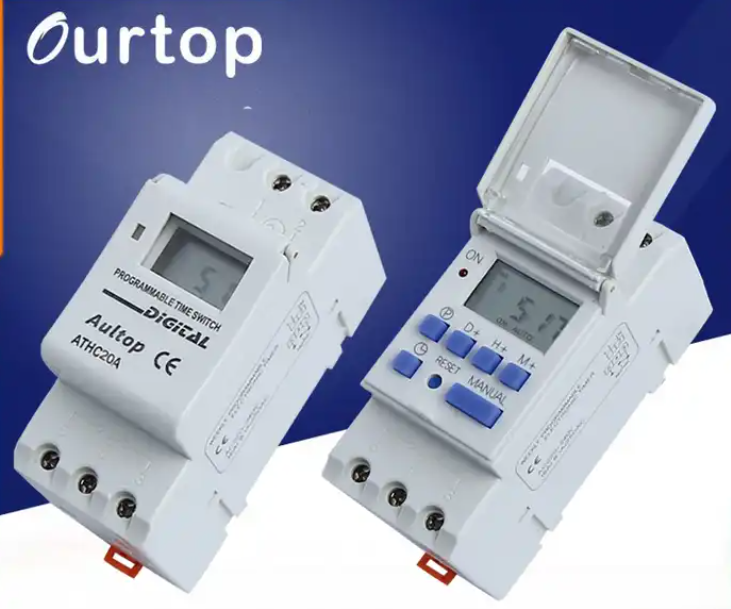

Digital Programmable Time Switch

ATHC20A
Common function
DIN RAILinstallation
oLCD display,Day/week program
18 ON/OFF programs
18 times pulse programs
DiCial
Ãurtop
ATHC20A
Lithium battery power reserve 3 year,
when electric supply cut off
Auto time erro correction +30 sec.weekly
Count down:lsec-99 min 59 sec
Pulse:l sec-59min 59 sec
Dispaly:LCD
Quantity:
Contact Now
add to cart
Common function
  • DIN RAILinstallation
  • LCD display,Day/week program
  • 18 ON/OFF programs
  • 18 times pulse programs
  • DiCial
  • Ãurtop
  • ATHC20A
  • Lithium battery power reserve 3 year,
when electric supply cut off

  • Auto time erro correction +30 sec.weekly
  • Count down:lsec-99 min 59 sec
  • Pulse:l sec-59min 59 sec
  • Dispaly:LCD

Technical data
AHTC20AAHTC20M
Voltage rating220VAC24-240VAC/DC
Voltage limit180-250VAC22-260VAC/DC
Frequency50-60 Hz

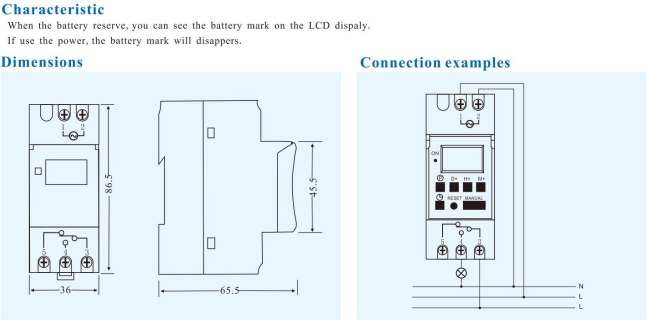

Width2 modules(36mm)
Installation typeDIN rail
Power reserve3 years(lithium battery)
Switching contactl change over switch
Switching capacity at 250vac,cosφ=120A
Switching capacity at 250vac,cosφ=0.612A
Incandescent/halogen lamp load2500W
Energy saving lamps22×7W,18×11W,16×15W,16×20W,14×23W
Shortest switching times1 minute(pulse/cycle 1 s)
Time accuracy≤2sec/day(25℃)
  consumptior5VA(max)
Mechancally10⁷
Service life        Electrically10⁵
mbient humidity35~85%rh
Ambient temperature-10~+45℃
Weightapprox150g
