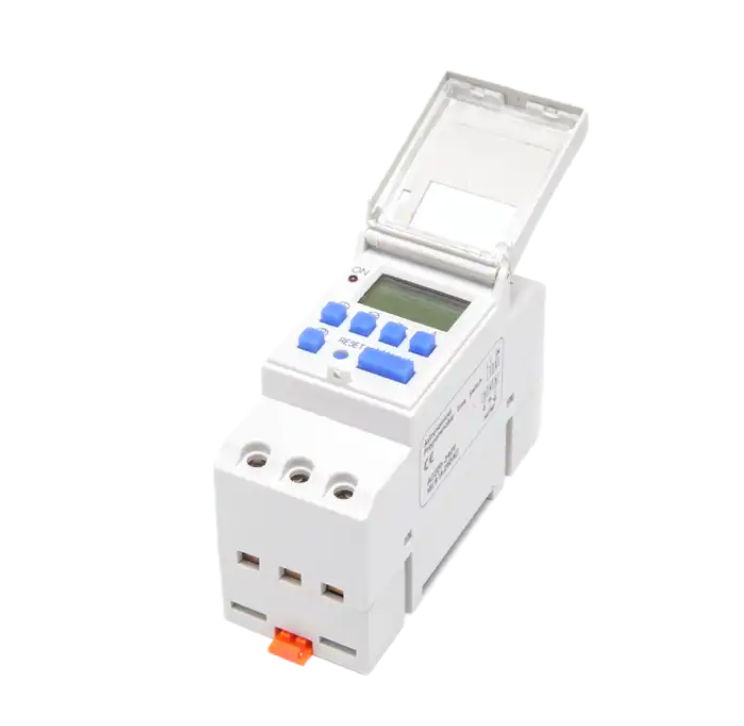

Digital Programmable Time Switch

ATHC15A
Common function
DIN RAIL installation
LCD display,Day/week program
18 ON/OFF programs
18 times pulse programs
Lithium battery power reserve 3 year,
when electric supply cut off
Auto time erro correction +30 sec, weekly
Count down:l sec-99 min 59 sec
Pulse:l sec-59min 59 sec
Dispaly:LCD
Quantity:
Contact Now
add to cart
Common function
  • DIN RAIL installation


  • LCD display,Day/week program
  • 18 ON/OFF programs
  • 18 times pulse programs
  • Lithium battery power reserve 3 year,
when electric supply cut off

  • Auto time erro correction +30 sec, weekly
  • Count down:l sec-99 min 59 sec
  • Pulse:l sec-59min 59 sec
  • Dispaly:LCD
Technical data
AHTC15AAHTC15M
Voltage rating220VAC24-240VAC/DC
Voltage limit180-250VAC22-260VAC/DC
Frequency50-60 Hz

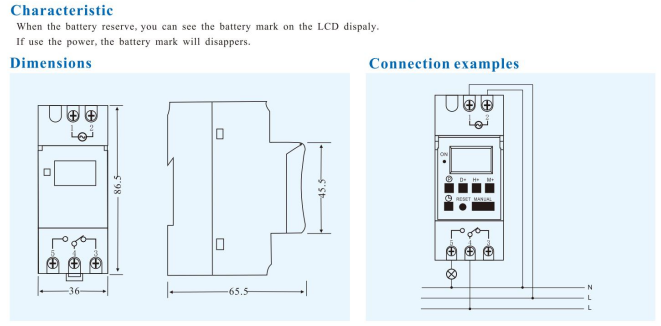

Width2 modules (36mm)
Installation typeDIN rail
Power reserve3 years(lithium battery)
Switching contact1 change over switch
Switching capacity at 250vac,cosφ=116A
Switching capacity at 250vac,cosφ=0.610A
Incandescent/halogen lamp load2300W
Energy saving lamps22×7W,18×11W,16×15W,16×20W,14×23W
Shortest switching times1 minute(pulse/cycle 1 s)
Time accuracy≤2sec/day(25℃)
  consumptiof5VA(max)
Mechancally10⁷
Service life       Electrically10⁵
Ambient humidity35~85%rh
Ambient temperature-10~+45℃
Weightapprox150g
