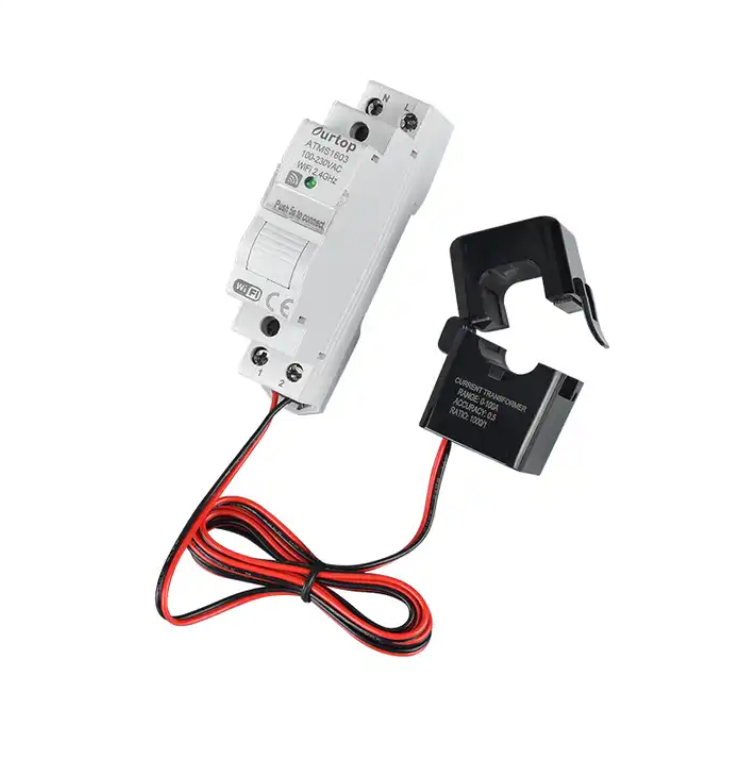

WiFi Smart Meter
ATMS1603
The Meter is a versatile and feature-rich device.
1.Also can be connected to WiFi by buttons from terminal Cl and C2.
2.Can be share with 20 users by Mobile App.
3.The Current Transformer can open.
1.Also can be connected to WiFi by buttons from terminal Cl and C2.
2.Can be share with 20 users by Mobile App.
3.The Current Transformer can open.
Quantity:
Function
- In the App can display:
Today Ele (KWh),
Current Ele (mA),
Current Ele (mA),
Current Power(W),
Current Voltage (V),
Total Ele(KWh)
Total Ele(KWh)

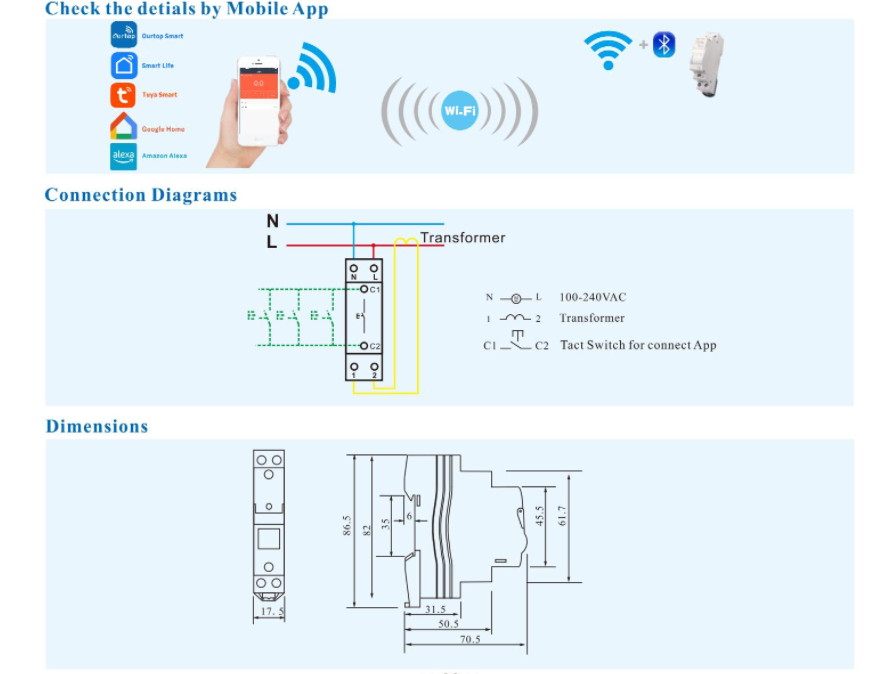

- Also can be connected to WiFi by buttons from terminal Cl and C2
- Can be share with 20 users by Mobile App.
- The Current Transformer can open.
| Technical data | |||||||
| ATMS1603 | |||||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | ||||||
| Operating range AC(50 Hz) | (0.8…1.1)UN | ||||||
| Rated powei | 2.2VA/0.7W | ||||||
| Current range | 0.02A～63A | ||||||
| WiFi Frequency | 2.4GHz | ||||||
| Ambient temperature range | -20℃~+60℃ | ||||||
| Mounting | DIN Rail35 mm(EN 60715) | ||||||
