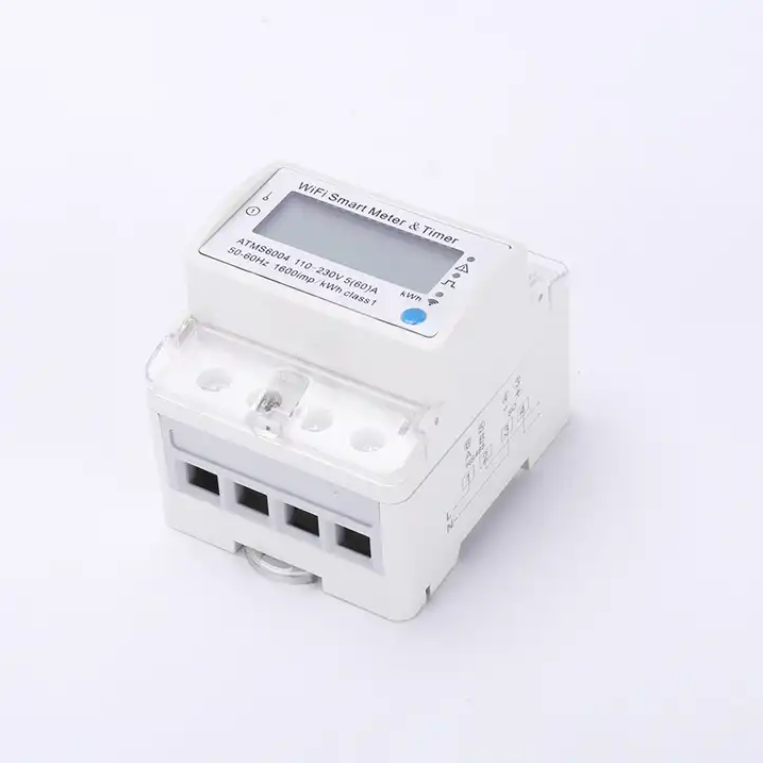

WiFi Smart Meter
ATMS6004WM
The Meter is a versatile and feature-rich device.
In the App can display:
Today Ele (KWh), Current Ele (mA).
Current Power (W), Current Voltage(V)Total Ele(KWh)
Current Total Active Power
Current Total Positive Active Power
Current Total Reverse Active Power
Total energy kWh
Rs485 Functions
In the App can display:
Today Ele (KWh), Current Ele (mA).
Current Power (W), Current Voltage(V)Total Ele(KWh)
Current Total Active Power
Current Total Positive Active Power
Current Total Reverse Active Power
Total energy kWh
Rs485 Functions
Quantity:
Function
- Program timer, can set 30 On/Offprograms one day or per week.
- If the product is disconnected from the network,
the timer retainsall programs set up by Mobile App and works according to the set programs.
- With memory function, When the product contact is in the close state,
after the power failure, and then call, the product contacts still keep the close state.
- Can be share with 20 users by Mobile App.
- The products can be worked with Amazon Alexa and Google Assistan.
- With Bluetooth function, when the WlFI signal is disconnected for 5minutes,
you can use the mobile APP to control the on and offof theproduct through Bluetooth.
- In the App can display: Today Ele (KWh), Current Ele (mA).
- Current Power (W), Current Voltage(V)Total Ele(KWh)
- Current Total Active Power
- Current Total Positive Active Power
- Current Total Reverse Active Power
- Total energy kWh
- Rs485 Functions
| Technical data | ||||||||||
| Contact specification | ATMS1601Z | ATMS2001Z | ||||||||
| Contact configuration | 1NO(SPST-NO) | |||||||||
| Rated current/Maximum peak current | 16A/250VAC(COSφ=1) | 20A/250VAC(COSφ=1) | ||||||||
| Rated voltage/Maximum switching voltage | 230V AC | 230V AC | ||||||||
| Rated load AC1 | 3700 VA | 4400 VA | ||||||||
| Rated load AC15 (230VAC) | 750 VA | 900 VA | ||||||||
| Nominal lamp rating:230V incandescent/halogen | 3000W | 3600W | ||||||||
| Fluorescent tubes with electronic ballast | 1500W | 1800W | ||||||||
| Fluorescent tubes with electromechanical ballast | 1000W | 1200W | ||||||||
| CFL | 600W | 720W | ||||||||
| 230VLED | 600W | 720W | ||||||||
| LV halogen or LED with electronic ballast | 600W | 720W | ||||||||
| LV halogen or LED with electromechanical ballast | 1500W | 1800W | ||||||||
| Minimum switching load mW(V/mA) | 1000(10/10) | |||||||||
| Supply specification | ||||||||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | |||||||||
| Rated power | 3VA/1.2W | |||||||||
| Operating range AC(50 Hz) | (0.8…1.1)UN | |||||||||
| Technical data | ||||||||||
| Electrical life at rated load in AC1cycles | 1x105 | |||||||||
| WiFi Frequency | 2.4GHz | |||||||||
| Ambient temperature range | -20℃~+60℃ | |||||||||
