Zigbee Smart Meter

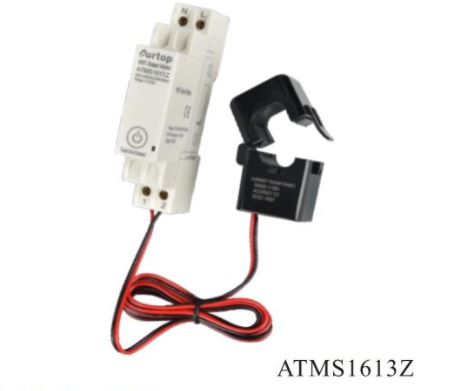

ATMS1613Z
The Meter is a versatile and feature-rich device.
In the App can display
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
Can be share with 20 users by Mobile App
The Current Transformer can open.
In the App can display
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
Can be share with 20 users by Mobile App
The Current Transformer can open.
Quantity:
Function
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
- In the App can display
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
- Can be share with 20 users by Mobile App
- The Current Transformer can open.
| Technical data | ||||||||||
| ATMS1613Z | ||||||||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | |||||||||
| Operating rangc AC(50 Hz) | (0.8…1.1)UN | |||||||||
| Rated power | 2.2VA/0.7W | |||||||||
| Current range | 0.02A～63A | |||||||||
| WiFi Frequency | 2.4GHz | |||||||||
| Ambient temperature range | -20℃~+60℃ | |||||||||
| Mounting | DIN Rail35 mm(EN 60715) | |||||||||
