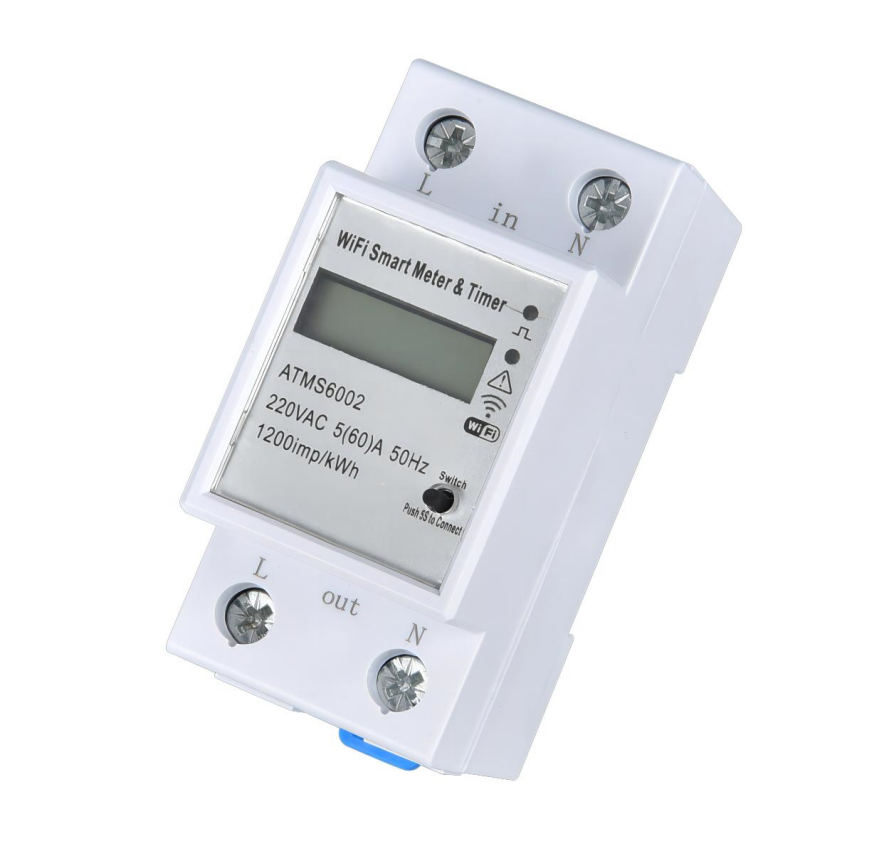

WiFi Smart Meter
ATMS6002WM
The Meter is a versatile and feature-rich device.
1.With Bluetooth function, when the WIFI signal is disconnected for 5 minutes, you can use the mobile APP to control the on and off of theproduct through Bluetooth.
2.In the App can display: Today Ele (KWh), Current Ele(mA),Current Power (W), Current Voltage(V),Total Ele (KWh)
3.Expense management function.
4.Over current, Low voltage and High voltage protection function.
1.With Bluetooth function, when the WIFI signal is disconnected for 5 minutes, you can use the mobile APP to control the on and off of theproduct through Bluetooth.
2.In the App can display: Today Ele (KWh), Current Ele(mA),Current Power (W), Current Voltage(V),Total Ele (KWh)
3.Expense management function.
4.Over current, Low voltage and High voltage protection function.
Quantity:
Function
- Program timer, can set 30 On/Offprograms one day or per week.
- Count down time, from l Min to 23 hours 59 Mins.
- If the product is disconnected from the network,
the timer retainsall programs set up by Mobile App and works according to the set programs.
- With memory function, When the product contact is in the close state,
after the power failure, and then call, the product contacts still keepthe close state.
- Can be share with 20 users by Mobile App.
- The products can be worked with Amazon Alexa and Google Assistan.
- With Bluetooth function, when the WIFI signal is disconnected for 5minutes,
you can use the mobile APP to control the on and off of theproduct through Bluetooth.
- In the App can display: Today Ele (KWh), Current Ele(mA),Current Power (W), Current Voltage(V),Total Ele (KWh)
- Expense management function.
- Over current, Low voltage and High voltage protection function.
| Technical data | ||||
| Contact specification | ATMS6002WM | |||
| Contact configuration | 1NO(SPST-NO) | |||
| Rated current/Maximum peak current | 60A/250VAC(COSφ=1) | |||
| Rated voltage/Maximum switching voltage | 230V AC | |||
| Rated load AC1 | 13000 VA | |||
| Rated load AC15 (230VAC) | 2700 VA | |||
| Nominal lamp rating:230V incandescent/halogen | 10000W | |||
| Fluorescent tubes with electronic ballast | 5000W | |||
| Fluorescent tubes with electromechanical ballast | 3600W | |||
| CFL | 2200W | |||
| 230V LED | 2200W | |||
| LV halogen or LED with electronic ballast | 2200W | |||
| LV halogen or LED with electromechanical ballast | 5000W | |||
| Minimum switching load mW(V/mA) | 1000(10/10) | |||
| Supply specification | ||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | |||
| Rated power | 3VA/1.2W | |||
| Operating range AC(50 Hz) | (0.8…1.1)Ux | |||
| Technical data | ||||
| Electrical life at rated load in AC1 cycles | 1×10⁵ | |||
| WiFi Frequency | 2.4GHz | |||
| Ambient temperature range | -10℃~+60℃ | |||
