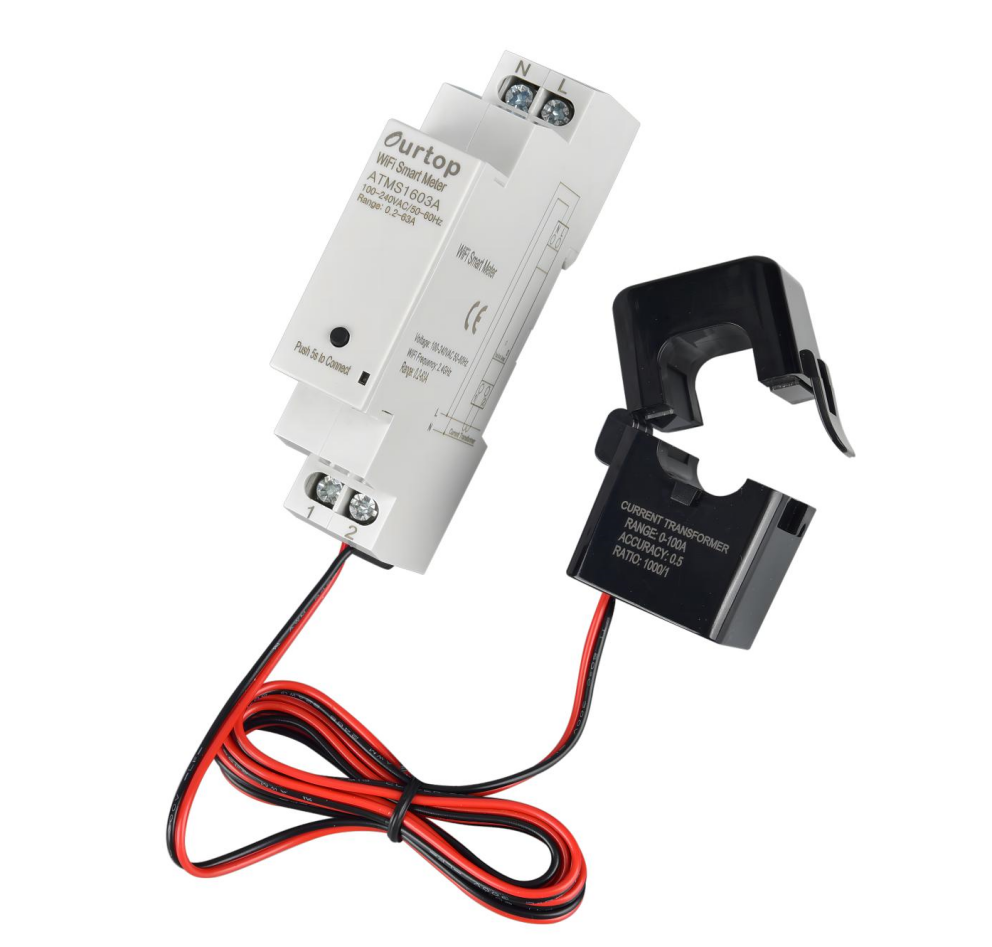

WiFi Smart Meter
ATMS1603A
The Meter is a versatile and feature-rich device
In the App can display:
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
Can be share with 20 users by Mobile App.
The Current Transformer can open.
In the App can display:
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
Can be share with 20 users by Mobile App.
The Current Transformer can open.
Quantity:
Function
- In the App can display:
Today Ele (KWh),
Current Ele (mA),
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
Current Power (W),
Current Voltage (V),
Total Ele (KWh)
- Can be share with 20 users by Mobile App.
- The Current Transformer can open.
| Technical data | |||||||
| ATMS1603A | |||||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | ||||||
| Operating range AC(50 Hz) | (0.8…1.1)UN | ||||||
| Rated powei | 2.2VA/0.7W | ||||||
| Current range | 0.02A～63A | ||||||
| WiFi Frequency | 2.4GHz | ||||||
| Ambient temperature range | -20℃~+60℃ | ||||||
| Mounting | DIN Rail35 mm(EN 60715) | ||||||
