Zigbee Smart Timer & Electricity Meter
ATMS1612Z
The Timer is a versatile and feature-rich device
1.Can be share with 20 users by Mobile App.
2.The products can be worked with Amazon Alexa and Google Assistan.
3.In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (kWh)
4.Over current protection function: Ifthe ATMS1612Z load is morethan 17A,or ATMS2012Z load is more than 22A,the products will cutoffthe circuit automatically.
1.Can be share with 20 users by Mobile App.
2.The products can be worked with Amazon Alexa and Google Assistan.
3.In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (kWh)
4.Over current protection function: Ifthe ATMS1612Z load is morethan 17A,or ATMS2012Z load is more than 22A,the products will cutoffthe circuit automatically.
Quantity:
Function
- Program timer, can set 30 On/Offprograms one day or per week.
- Astronomical timer,Circulate timer, Random timer function.
- Count down time. from 1 Min to 23 hours 59 Mins.
- If the product is disconnected from the network,
the timer retainsall programs set up by Mobile App and works according to the set programs.
- The power-on state can be selected by yourself, there are 3 states:1)Remember last status,2)On, 3)off。
The factory default state is remember last status.

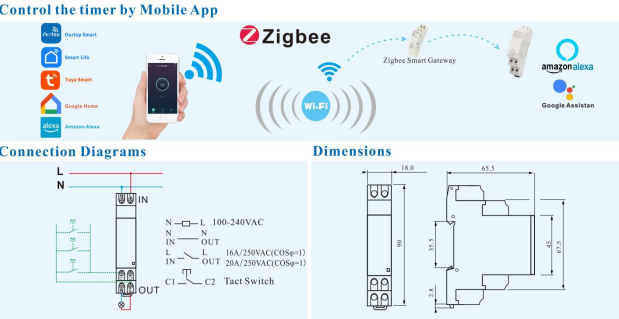

- Also can controlled by buttons from terminal Cl and C2.
- Can be share with 20 users by Mobile App.
- The products can be worked with Amazon Alexa and Google Assistan.
- In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (kWh).
- Over current protection function: Ifthe ATMS1612Z load is morethan 17A,
or ATMS2012Z load is more than 22A,the products will cutoffthe circuit automatically.
| Technical data | |||||||||||
| Contact specification | ATMS1612Z | ATMS2012Z | |||||||||
| Contact configuration | 1NO(SPST-NO) | ||||||||||
| Rated current/Maximum peak current | 16A/250VAC(COSφ=1) | 20A 1250VAC(COSg | |||||||||
| Rated voltage/Maximum switching voltage | 230V AC | 230V AC | |||||||||
| Rated load AC1 | 3700 VA | 4400 VA | |||||||||
| Rated load AC15 (230VAC) | 750 VA | 900 VA | |||||||||
| Nominal lamp rating:230V incandescent/halogen | 3000W | 3600W | |||||||||
| Fluorescent tubes with electronic ballast | 1500W | 1800W | |||||||||
| Fluorescent tubes with electromechanical ballast | 1000W | 1200W | |||||||||
| CFL | 600W | 720W | |||||||||
| 230V LED | 600W | 720W | |||||||||
| LV halogen or LED with electronic ballast | 600W | 720W | |||||||||
| LV halogen or LED with electromechanical ballast | 1500W | 1800W | |||||||||
| Minimum switching load mW(V/mA) | 1000(10/10) | ||||||||||
| Supply specification | |||||||||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | ||||||||||
| Rated power | 3VA/1.2W | ||||||||||
| Operating range AC(50 Hz) | (0.8…1.1)UN | ||||||||||
| Technical data | |||||||||||
| Electrical life at rated load in AC1cycles | 1x105 | ||||||||||
| WiFi Frequency | 2.4GHz | ||||||||||
| Ambient temperature range | -20℃~+60℃ | ||||||||||
