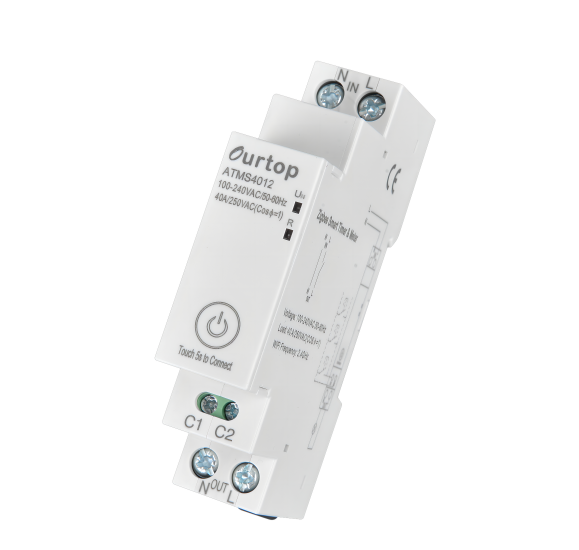

WiFi Smart Timer & Electricity Meter
ATMS4012
The Timer is a versatile and feature-rich device.
1.With Bluetooth function, when the WIFI signal is disconnected for 5minutes, you can use the mobile APP to control the on and off of theproduct through Bluetooth.
2.In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (KWh)
3.Over current protection function: Ifthe load is more than 48A.the product will cut offthe circuit automatically.
4.Touch button for connect the WiFi. and switch ON/OFF
1.With Bluetooth function, when the WIFI signal is disconnected for 5minutes, you can use the mobile APP to control the on and off of theproduct through Bluetooth.
2.In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (KWh)
3.Over current protection function: Ifthe load is more than 48A.the product will cut offthe circuit automatically.
4.Touch button for connect the WiFi. and switch ON/OFF
Quantity:
Function
- Program timer, can set 30 On/Offprograms one day or per week.
- Count down time, from l Min to 23 hours 59 Mins.
- If the product is disconnected from the network,
the timer retainsall programs set up by Mobile App and works according to the setprograms.
- The power-on state can be selected by yourself, there are 3 states:1)Memory(Remember last status, 2)On, 3)off
The factory default state is Memory(Remember last status).

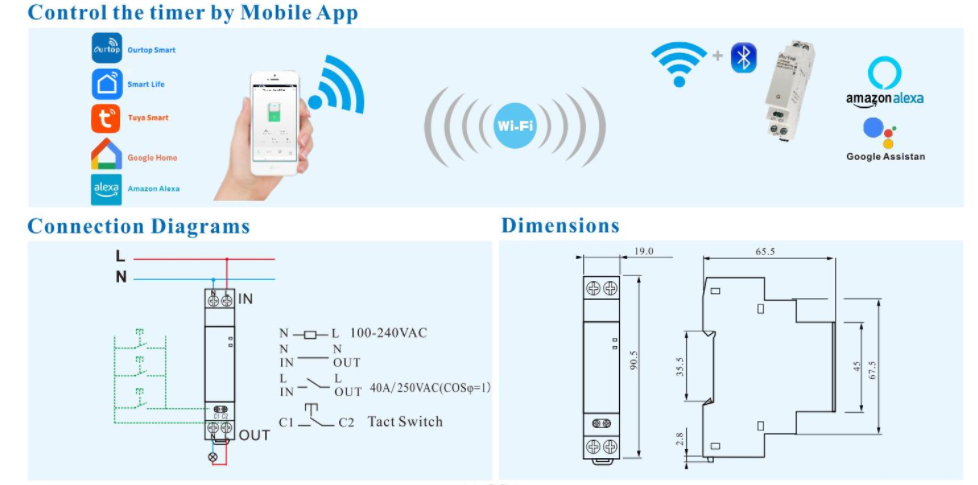

- Also can controlled by buttons from terminal Cl and C2.
- Can be share with 20 users by Mobile App.
- The products can be worked with Amazon Alexa and Google Assistan.
- With Bluetooth function, when the WIFI signal is disconnected for 5minutes,
you can use the mobile APP to control the on and off of theproduct through Bluetooth.
- In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (KWh)
- Over current protection function: Ifthe load is more than 48A.the product will cut offthe circuit automatically.
- Touch button for connect the WiFi. and switch ON/OFF
| Contact specification | ATMS4012 | ||||||||
| Contact configuration | 1NO(SPST-NO) | ||||||||
| Rated current/Maximum peak current | 40A/250VAC(COSφ=1) | ||||||||
| Rated voltage/Maximum switching voltage | 230V AC | ||||||||
| Rated load AC1 | 8800 VA | ||||||||
| Rated load AC15 (230VAC) | 1800 VA | ||||||||
| Nominal lamp rating:230V incandescent/halogen | 7200W | ||||||||
| Fluorescent tubes with electronic ballast | 3500W | ||||||||
| Fluorescent tubes with electromechanical ballast | 2400W | ||||||||
| CFL | 1500W | ||||||||
| 230V LED | 1500W | ||||||||
| LV halogen or LED with electronic ballast | 1500W | ||||||||
| LV halogen or LED with electromechanical ballast | 3500W | ||||||||
| Minimum switching load mW(V/mA) | 1000(10/10) | ||||||||
| Supply specification | |||||||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | ||||||||
| Rated power | 3VA/1.2W | ||||||||
| Operating range AC(50 Hz) | (0.8…1.1)UN | ||||||||
| Technical data | |||||||||
| Electrical life at rated load in AC1cycles | 1x105 | ||||||||
| WiFi Frequency | 2.4GHz | ||||||||
| Ambient temperature range | -20℃~+60℃ | ||||||||
