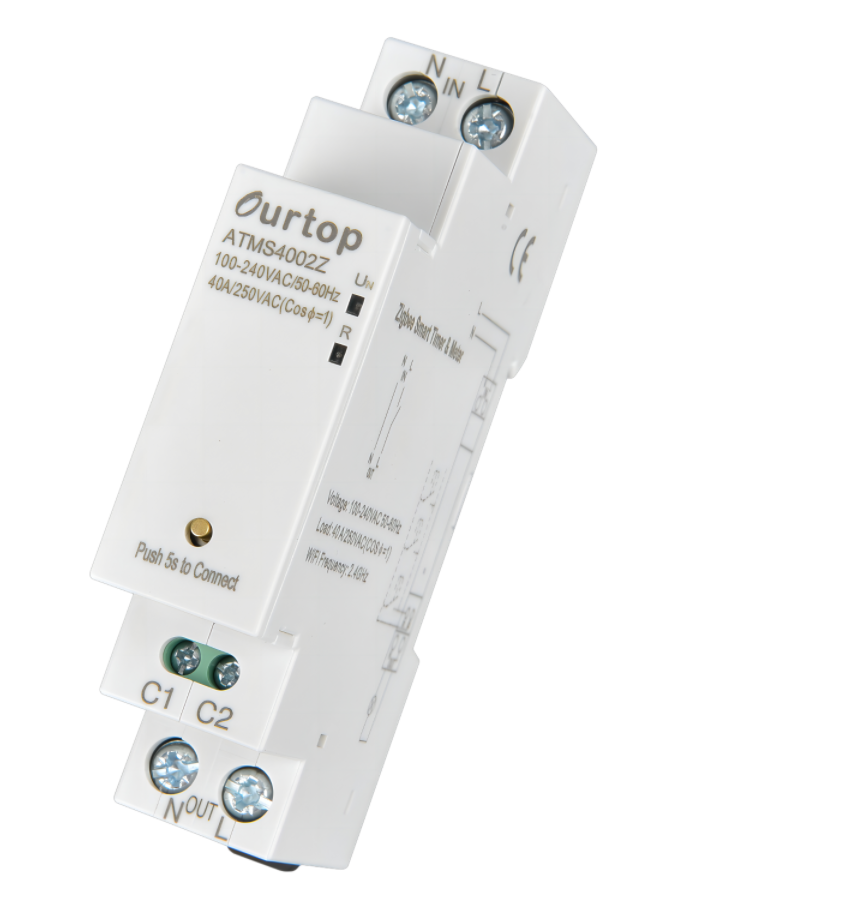

Zigbee Smart Timer & Electricity Meter
ATMS4002Z
The Timer is a versatile and feature-rich device
1.The products can be worked with Amazon Alexa and Google Assistan.
2.In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (KWh).
3.Over current protection function: Ifthe load is more than 48A.the product will cut offthe circuit automatically.
4.Push button for connect the WiFi ,and switch ON/OFF
1.The products can be worked with Amazon Alexa and Google Assistan.
2.In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (KWh).
3.Over current protection function: Ifthe load is more than 48A.the product will cut offthe circuit automatically.
4.Push button for connect the WiFi ,and switch ON/OFF
Quantity:
Function
- Program timer, can set 30 On/Offprograms one day or per week.
- Count down time,from l Min to 23 hours 59 Mins.
- If the product is disconnected from the network,
the timer retainsall programs set up by Mobile App and works according to the set programs.
- The power-on state can be selected by yourself, there are 3 states:1)Memory(Remember last status, 2)On, 3)off
The factory default state is Memory(Remember last status).

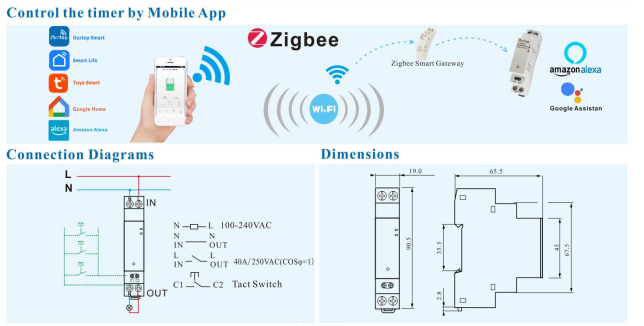

- Also can controlled by buttons from terminal Cl and C2.
- Can be share with 20 users by Mobile App.
- The products can be worked with Amazon Alexa and Google Assistan.
- In the App can display: Today Ele (KWh), Current Ele (mA),Current Power (W), Current Voltage (V),Total Ele (KWh)
- Over current protection function: Ifthe load is more than 48A.
the product will cut offthe circuit automatically.
- Push button for connect the WiFi ,and switch ON/OFF
| Technical data | |||||||
| Contact specification | ATMS4002Z | ||||||
| Contact configuration | 1NO(SPST-NO) | ||||||
| Rated current/Maximum peak current | 40A/250VAC(COSφ=1) | ||||||
| Rated voltage/Maximum switching voltage | 230V AC | ||||||
| Rated load AC1 | 8800 VA | ||||||
| Rated load AC15 (230VAC) | 1800 VA | ||||||
| Nominal lamp rating:230V incandescent/halogen | 7200W | ||||||
| Fluorescent tubes with electronic ballast | 3500W | ||||||
| Fluorescent tubes with electromechanical ballast | 2400W | ||||||
| CFL | 1500W | ||||||
| 230V LED | 1500W | ||||||
| LV halogen or LED with electronic ballast | 1500W | ||||||
| LV halogen or LED with electromechanical ballast | 3500W | ||||||
| Minimum switching load mW(V/mA) | 1000(10/10) | ||||||
| Supply specification | |||||||
| Nominal voltage (UN) | 100-240V AC(50/60Hz) | ||||||
| Rated power | 3VA/1.2W | ||||||
| Operating range AC(50 Hz) | (0.8…1.1)UN | ||||||
| Technical data | |||||||
| Electrical life at rated load in AC1 cycles | 1×10⁵ | ||||||
| WiFi Frequency | 2.4GHz | ||||||
| Ambient temperature range | -20℃~+60℃ | ||||||
