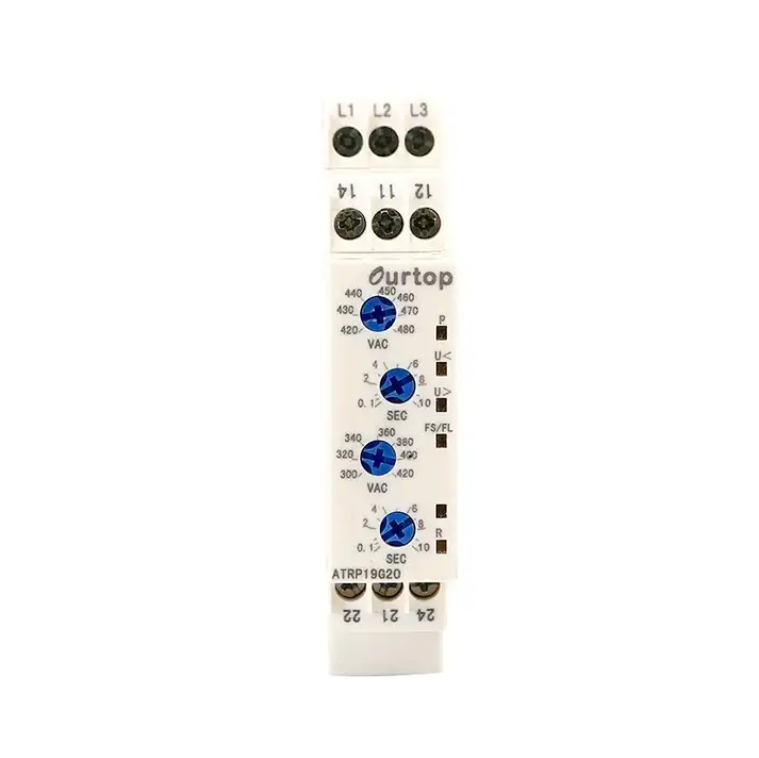

3 Phase Voltage Control Relay
ATRP19G00
Product Or Component Type : 3 Phase Voltage Control Relay
Relay Type : Control relay
Product Specific Appli-cation : For 3-phase supply
Relay Name : ATRP19G00 ATRP19G20
Relay Monitored Parameters : Phase failure detection,Phase sequence,Phase Asymmetry,Over Voltage and undervoltage
Switching Capacity In Va :1250 VA
Relay Type : Control relay
Product Specific Appli-cation : For 3-phase supply
Relay Name : ATRP19G00 ATRP19G20
Relay Monitored Parameters : Phase failure detection,Phase sequence,Phase Asymmetry,Over Voltage and undervoltage
Switching Capacity In Va :1250 VA
Quantity:

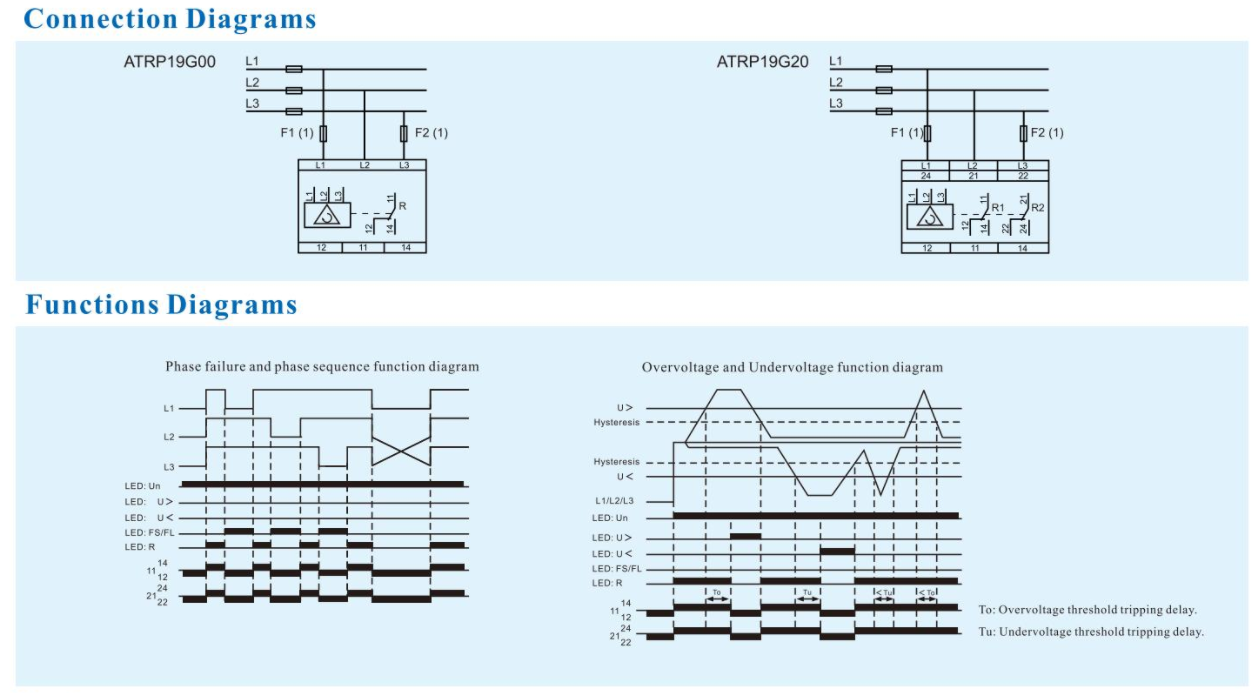

| Main | |||||||
| Product Or ComponentType | 3 Phase Voltage Control Relay | ||||||
Relay Type | Control relay | ||||||
| Product Specific Appli-cation | For 3-phase supply | ||||||
| Relay Name | ATRP19G00 | ATRP19G20 | |||||
| Relay Monitored Parameters | Phase failure detection,Phase sequence, Phase Asymmetry,Over Voltage and undervoltage | ||||||
| Switching Capacity In Va | 1250 VA | ||||||
| Complementary | ||||||||
| Model | ATRP19G00 ATRP19G20 | |||||||
| Maximum Switching Voltage | 250VDC/250VAC | |||||||
| Rated Supply Voltage | 300...480VAC3 phases | |||||||
| Supply Voltage Limits | 270...528VAC | |||||||
| Adjustable Undervoltage Umin | 300,320,340,360,380,400,420VAC3 phases | |||||||
| Adjustable Overvoltage Umax | 420,430,440,450,460,470,480VAC3 phases | |||||||
| Power Consumption In Va | <=22 VA 400 VAC50 Hz | |||||||
| Trip delay time | 0.1S.....10S adjustable | |||||||
| Control Circuit Frequency | 50...60 Hz+/-10% | |||||||
| Output Contacts | 1 C/0 2 C/0 | |||||||
| Nominal Output Current | 8A 250VAC | |||||||
| Delay At Power Up | <=650 ms | |||||||
| Voltage Range | 270...528 VAC | |||||||
| Reset time | 1000ms | |||||||
| Overvoltage Category | III conforming to IEC 60664-1 | |||||||
| Insulation Resistance | >500 MOhm at 500VDC conforming to IEC60664-1 >500 MOhm at 500VDC conforming to IEC 60255-5 | |||||||
| Supply Frequency | 50/60 Hz+/-10% | |||||||
| Operating Position | Any position without | |||||||
| Connections -Terminals | Screw terminals 2x0.2...2 x1.5 mm²-AWG 24...AWG16,flexible cable with ca-ble end Screw terminals 1x0.2..1x2.5 mm²-AWG 24...AWG12,flexible cable with ca-ble end Screw terminals 2x0.5...2x2.5 mm²-AWG 20...AWG 14,solid cable withoutcable end Screw terminals 1x0.5...1x4 mm²-AWG 20...AWG 11,solid cable without ca-ble end | |||||||
| TighteningTorque | 0.6...1 N.m conforming to IEC 60947-1 | |||||||
| Status Led | P:green for power,U<:red for undervoltage,U>:red for Overvoltage, | |||||||
| FS/FL:red for Phase Sequence or Phase failure,R:yellow for relay | ||||||||
| MountingSupport | 35mm symmetrical DIN rail conforming to EN/IEC 60715 | |||||||
| Electrical Durability | 100000 cycles | |||||||
| Mechanical Durability | ≤30000000 cycles | |||||||
| Operating Rate | ≤360 operations/hour under full load | |||||||
| Width | 17.5 mm | |||||||
| Product Weight | 0.13 kg | |||||||
| Environment | ||
| Electromagnetic Compatibility | Immunity for industrial environments conforming to EN/IEC61000-6-2 Emission standard for residential,commercial and light-industrial environments conforming to EN/IEC61000-6-3 Emission standard for industrial environments conforming to EN/IEC61000-6-4 | |
| Standards | EN/IEC 60255-1 | |
| Ambient Air Temperature For Storage | -40...70 °℃ | |
| Ambient Air Temperature For Operation | -20...50 ℃ | |
| Relative Humidity | 95%at 55℃ conforming to IEC 60068-2-30 | |
| Vibration Resistance | 1 gn(f=57.6...150 Hz)conforming to IEC60068-2-6/IEC60255-21-1 0.35 mm(f=5...57.6 Hz)conforming to IEC 60068-2-6/IEC 60255-21-1 | |
| Shock Resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 | |
| Ip Degree OfProtection | Ip30(casing)conforming to IEC60529 IP20(terminals)conforming to IEC60529 | |
| Pollution Degree | 3 conforming to IEC60664-1 | |
| Dielectric Test Voltage | 2 kV 1 min AC50 Hz | |
| Non-dissipating Shock Wave | 4 kV | |
